Power Brick Mini

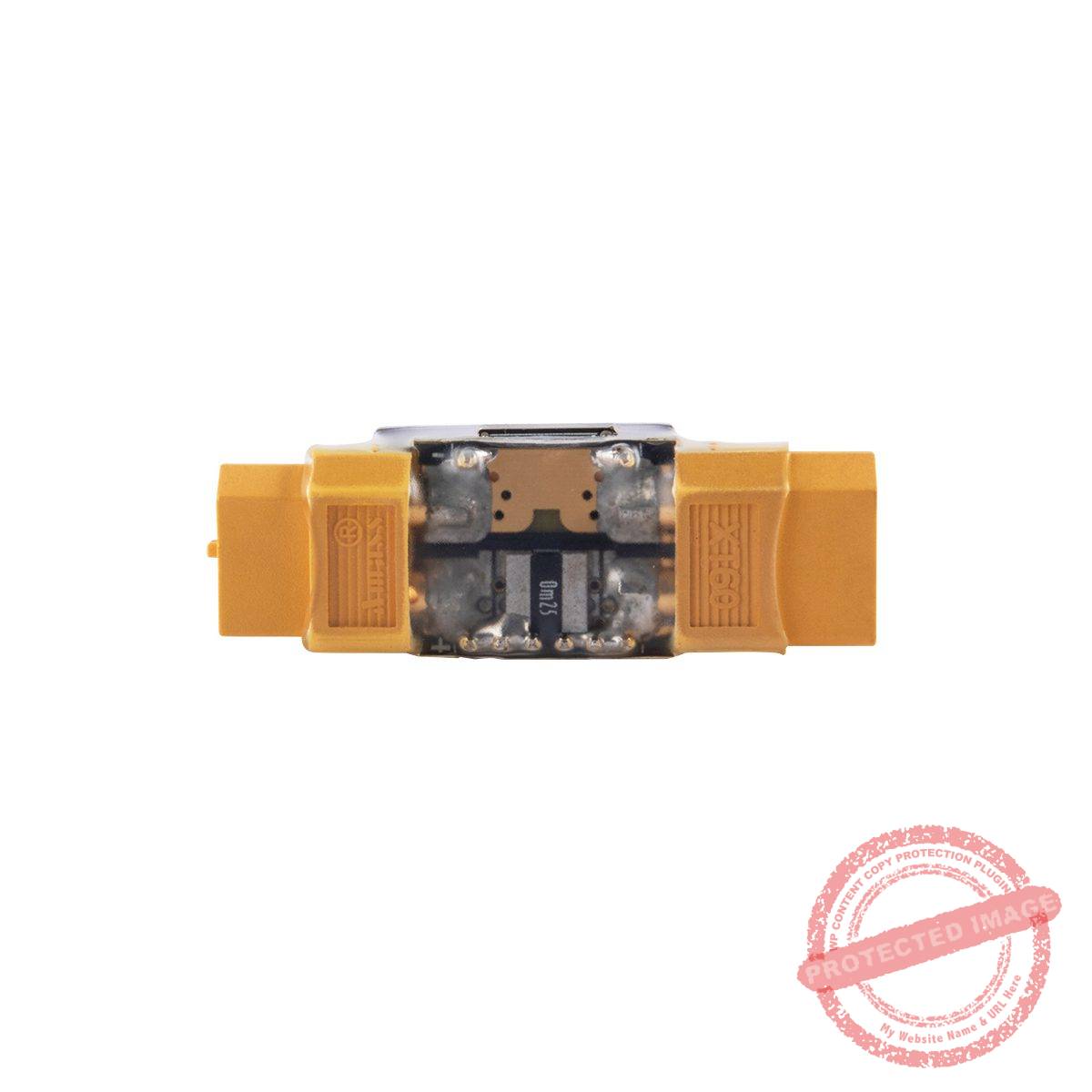

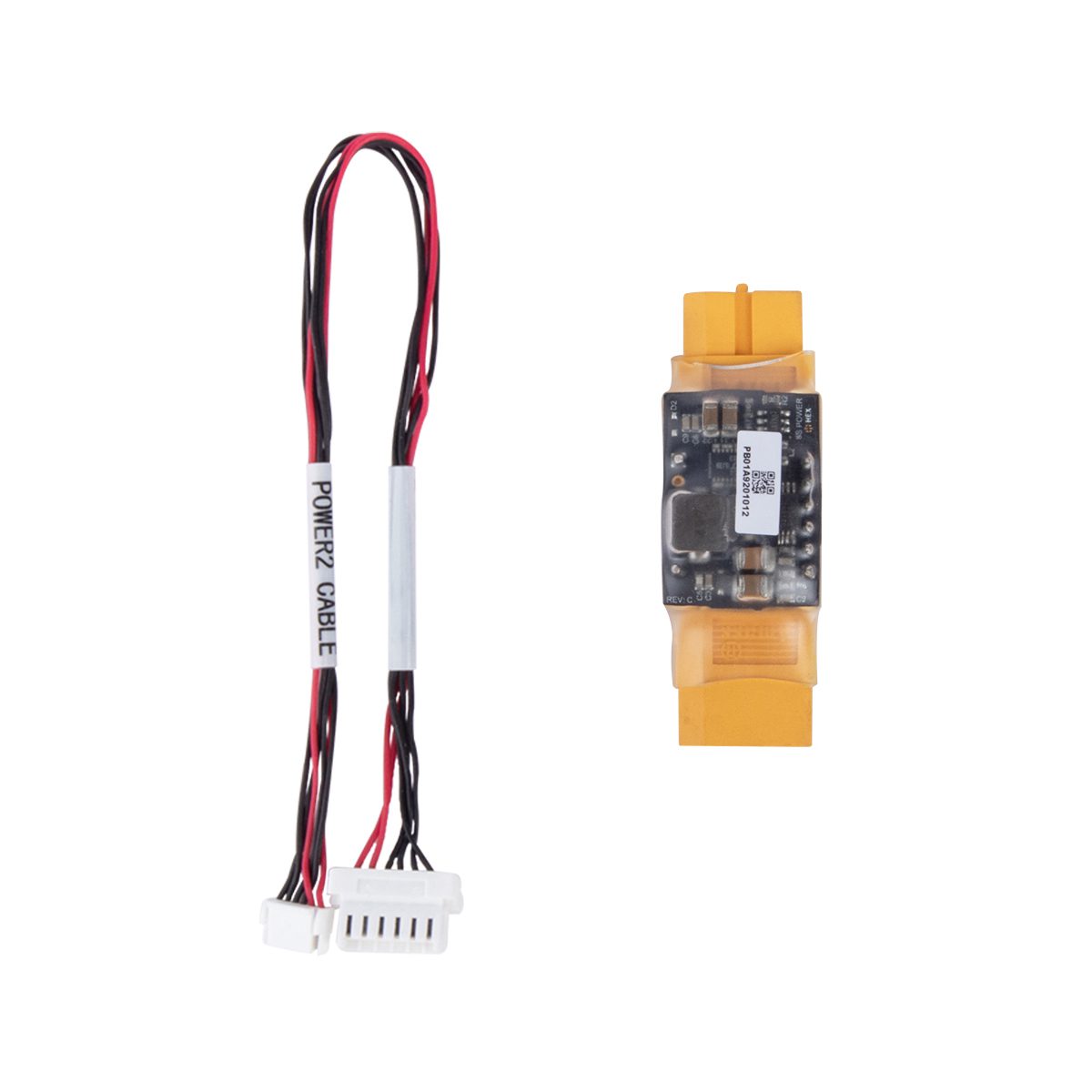

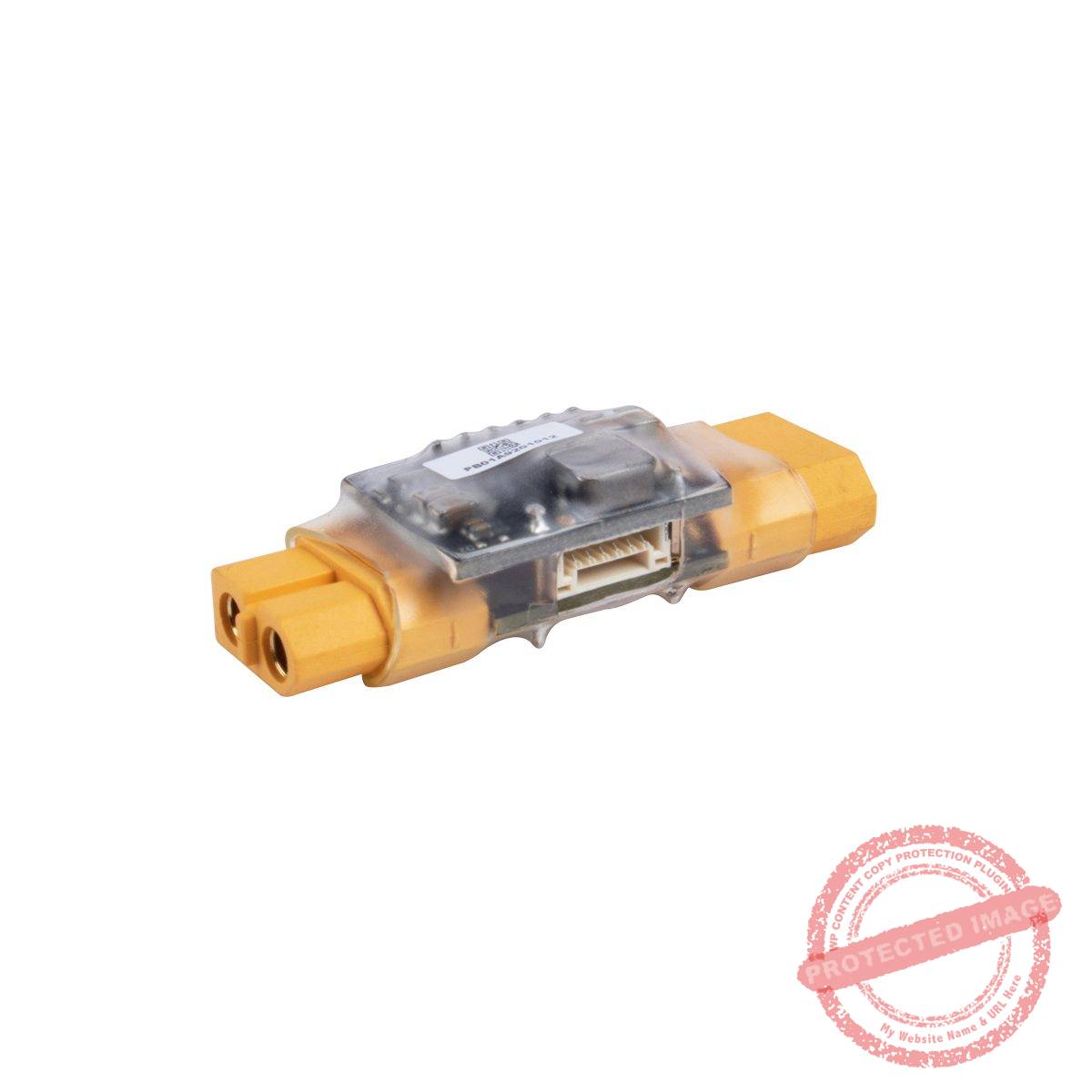

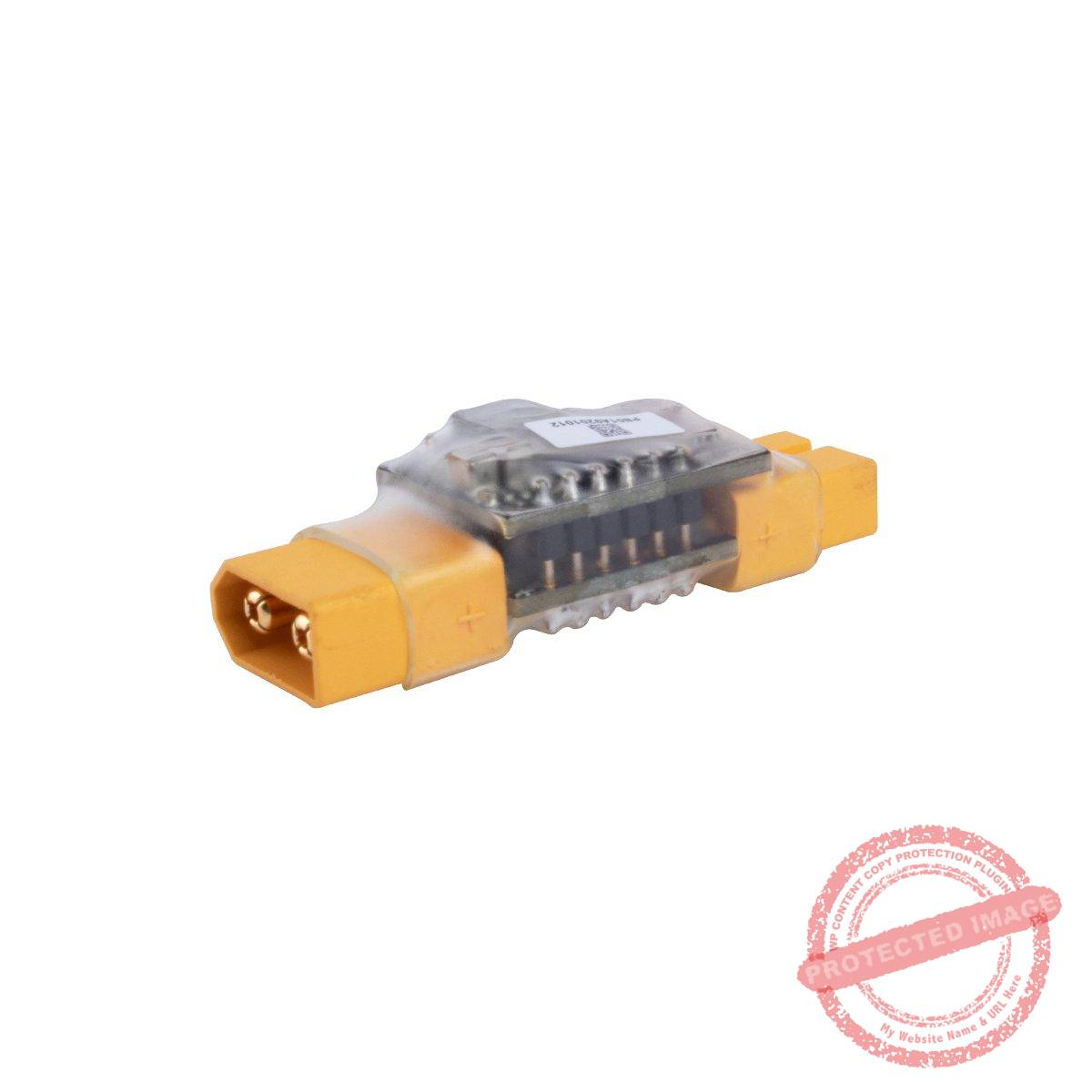

Cubepilot Power Brick Mini module for The Cube (Pixhawk 2.1) Power Brick for Cube orange/Cube orange autopilot This HEX Power Brick module is up to 8s 30A continuous, It supplies the cube (new Pixhawk 2.1) with a steady power source, all through a 6-pos cable. The power brick also provides current and voltage readings to the autopilot system. Specifications Maximum input voltage: 8S Max. continuous current sensing: 30A Max burst current: 100A Connectors: XT-60 or without XT-60 Weight: 14 g Size : 53 x 18 x 14 mm Power Brick Mini Connection Connect the power module to the POWER1 port via POWER cable. If there are second battery monitors, please connect it to POWER2 port. The Cube will turn on immediately after battery is connected. Connect the XT60 on the other side of power module to the motor system and loads. If any questions arise, please feel free to contact us or visit our support page. Watch more about products on our YouTube. For higher current ratings, consider other sensors in our Store.
