Holybro ST VL53L1X Lidar

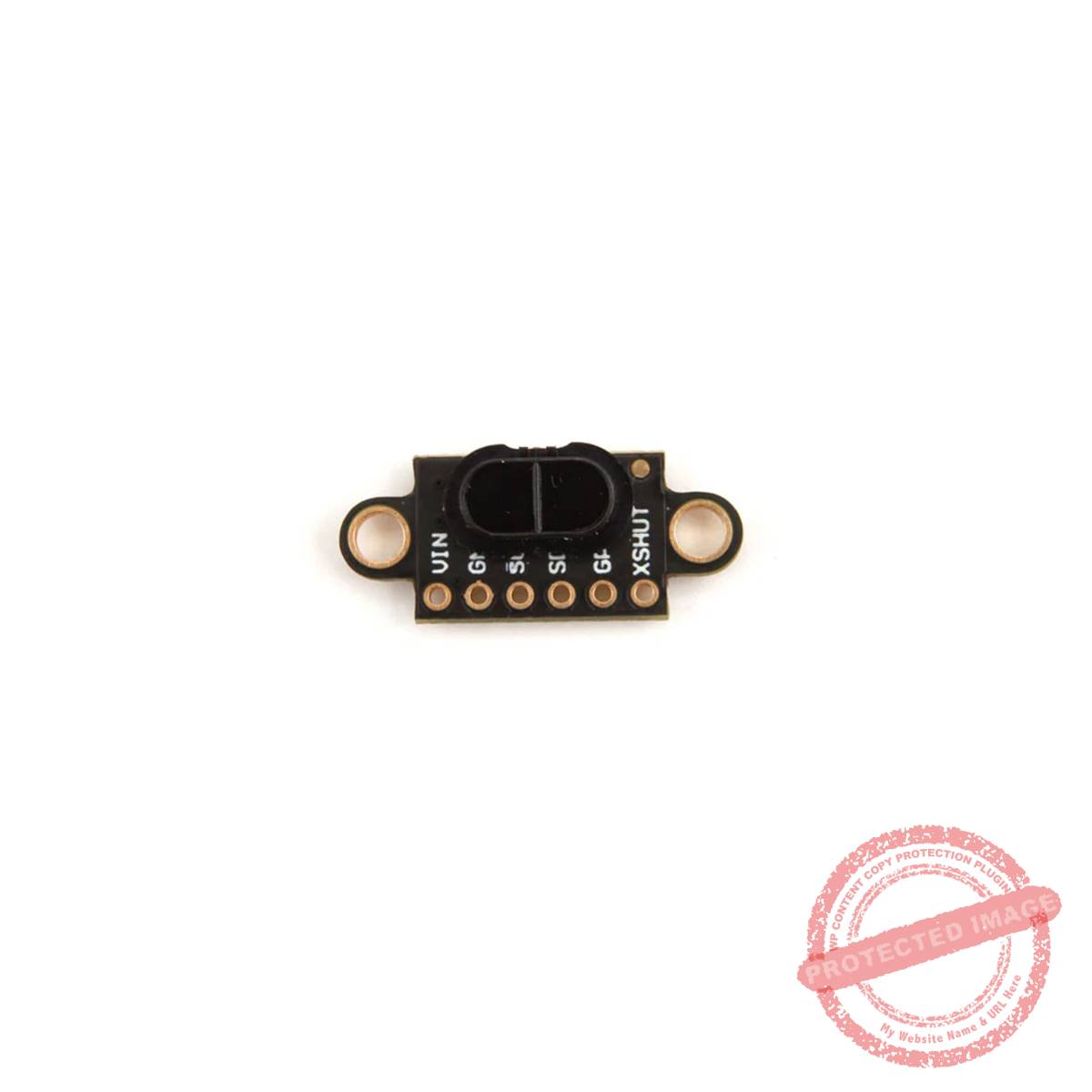

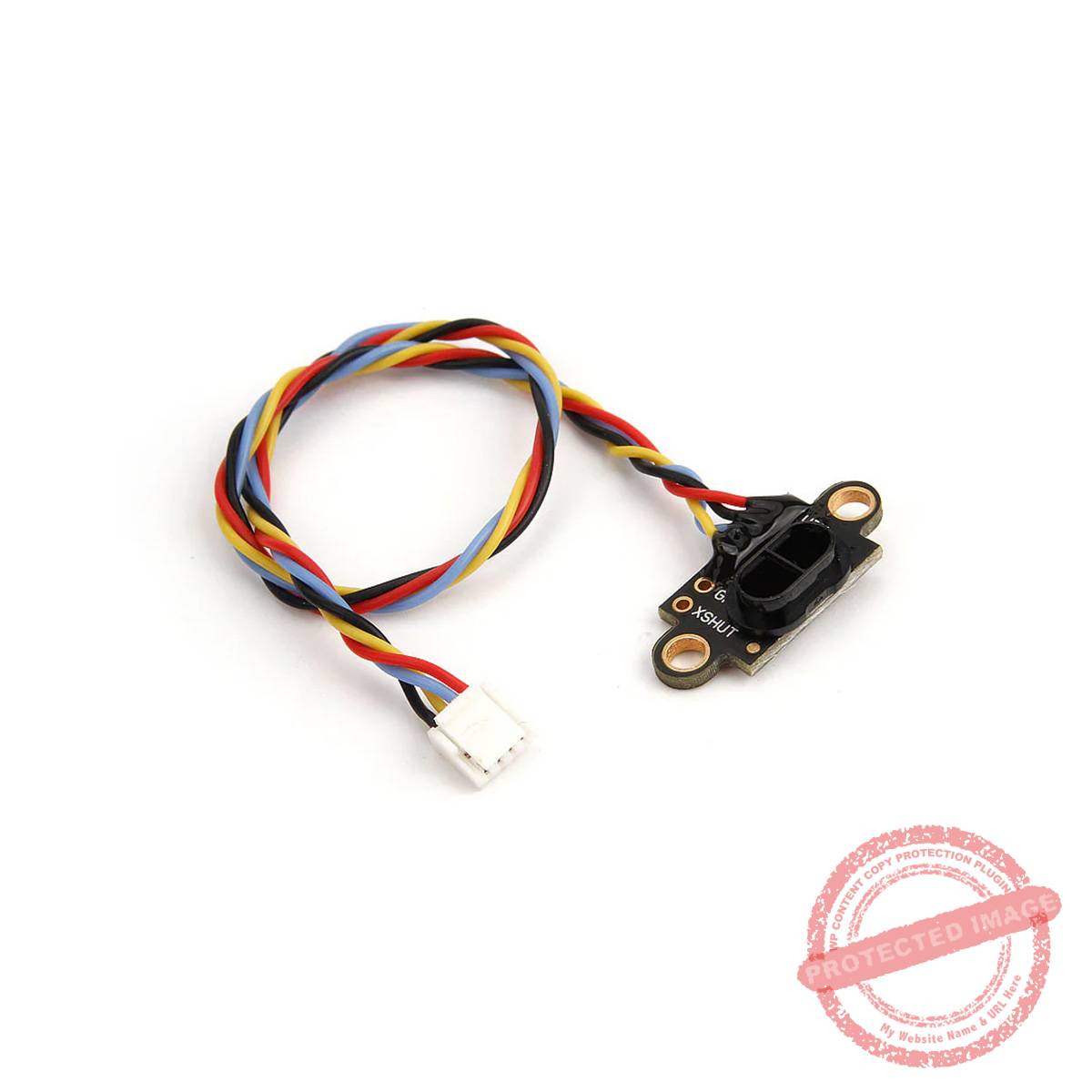

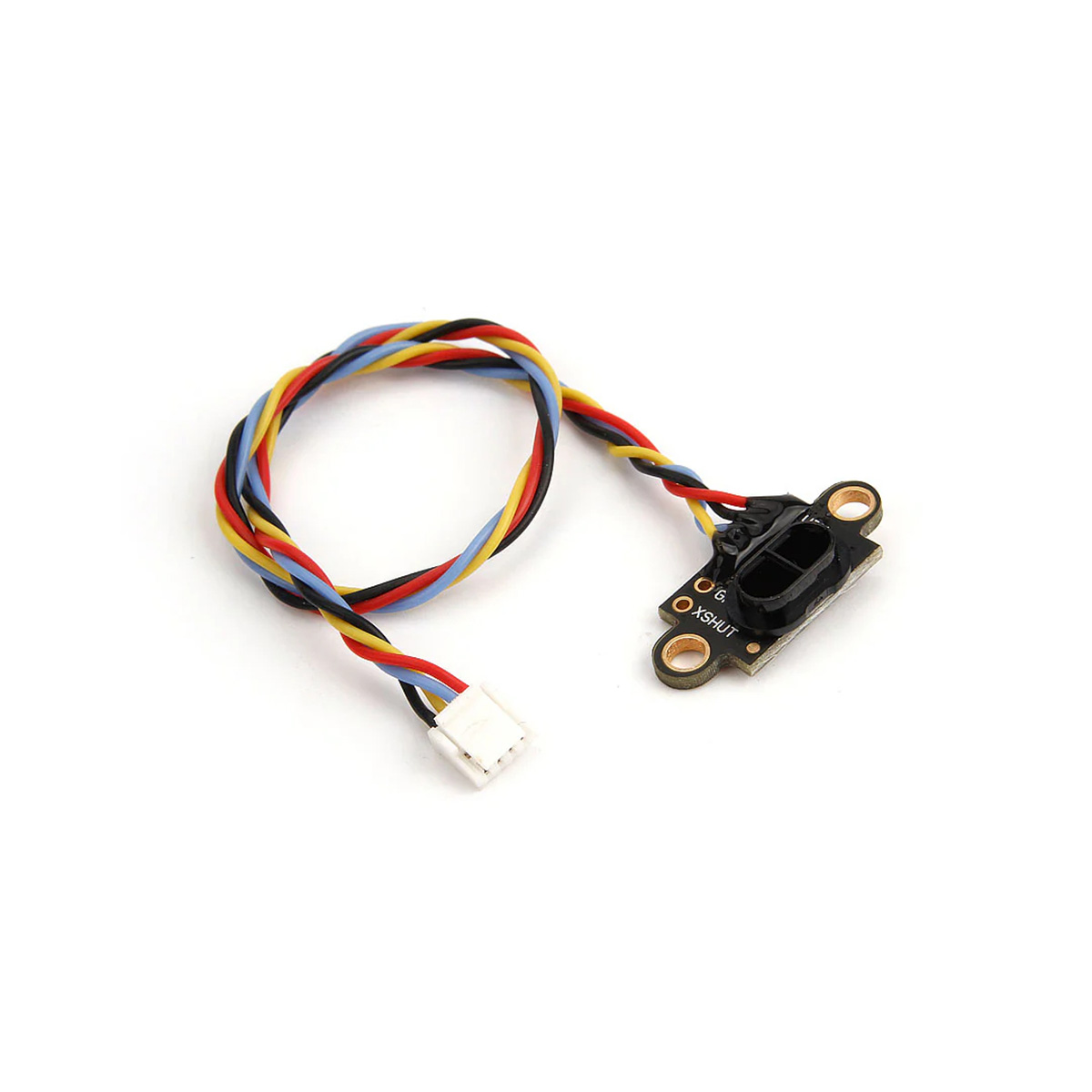

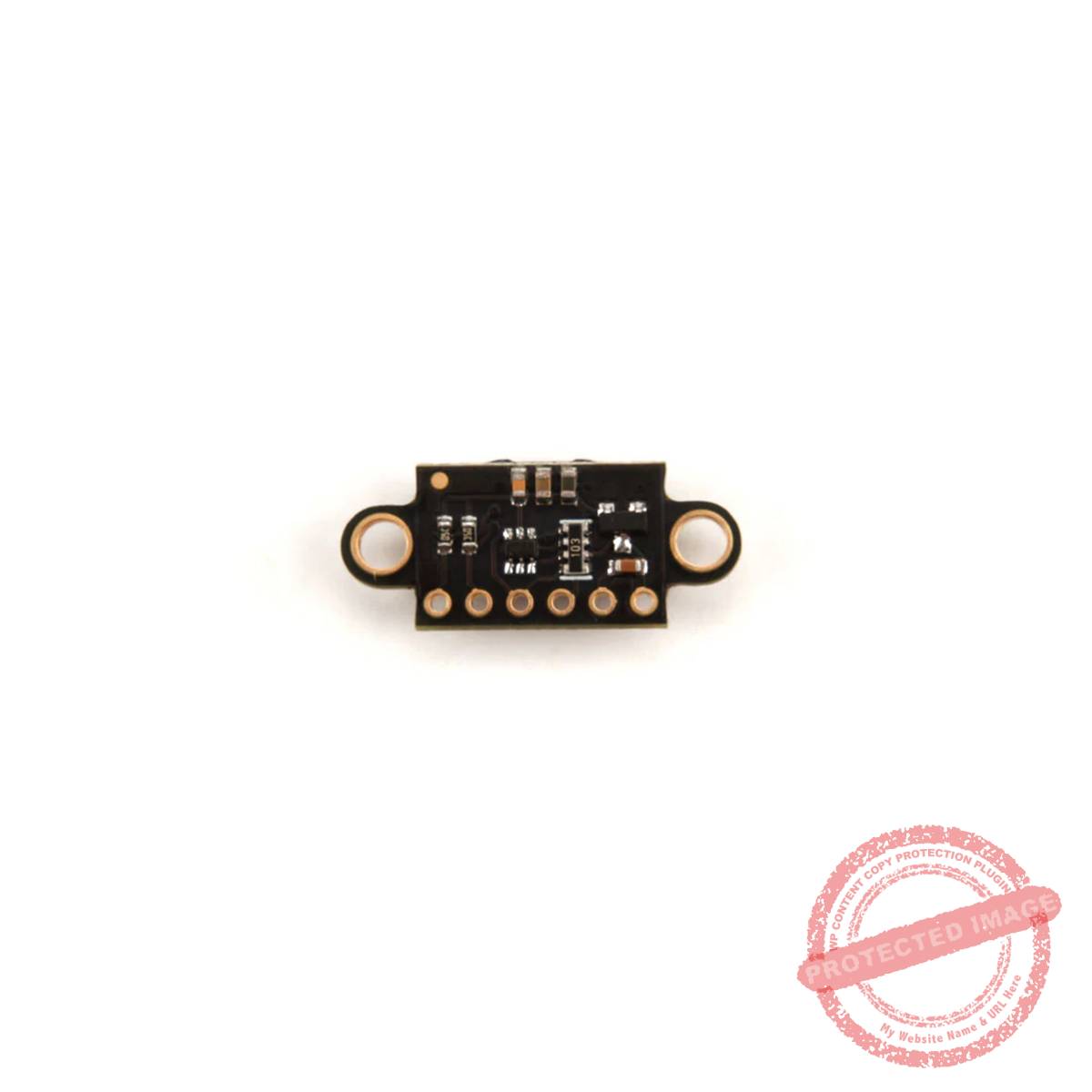

Holybro ST VL53L1X Lidar Holybro ST VL53L1X Lidar is a state-of-the-art, Time-of-Flight (ToF), laser-ranging sensor, enhancing the ST FlightSense™ product family. It is the fastest miniature ToF sensor on the market with accurate ranging up to 4 m and fast ranging frequency up to 50 Hz. Follow us World Drone Market on our YouTube to view more about the Holybro Product. Features Fully integrated miniature module Emitter: 940 nm invisible laser (Class1) SPAD (single photon avalanche diode) receiving array with integrated lens Low-power microcontroller running advanced digital firmware Pin-to-pin compatible with the VL53L0X FlightSense™ ranging sensor Fast and accurate long distance ranging Up to 400 cm distance measurement Up to 50 Hz ranging frequency Typical full field-of-view (FoV): 27 ° Programmable region-of-interest (ROI) size on the receiving array, allowing the sensor FoV to be reduced Programmable ROI position on the receiving array, providing multizone operation control from the host Easy integration Single reflowable component Can be hidden behind many cover window materials Software driver and code examples for turnkey ranging Single power supply (2v8) I²C interface (up to 400 kHz) Shutdown and interrupt pins SPECIFICATIONS Working voltage: 3.3-5v Communication interface: I2C Dimensions: 25×10.7×3.2mm Weight: 2.4g PINOUT
