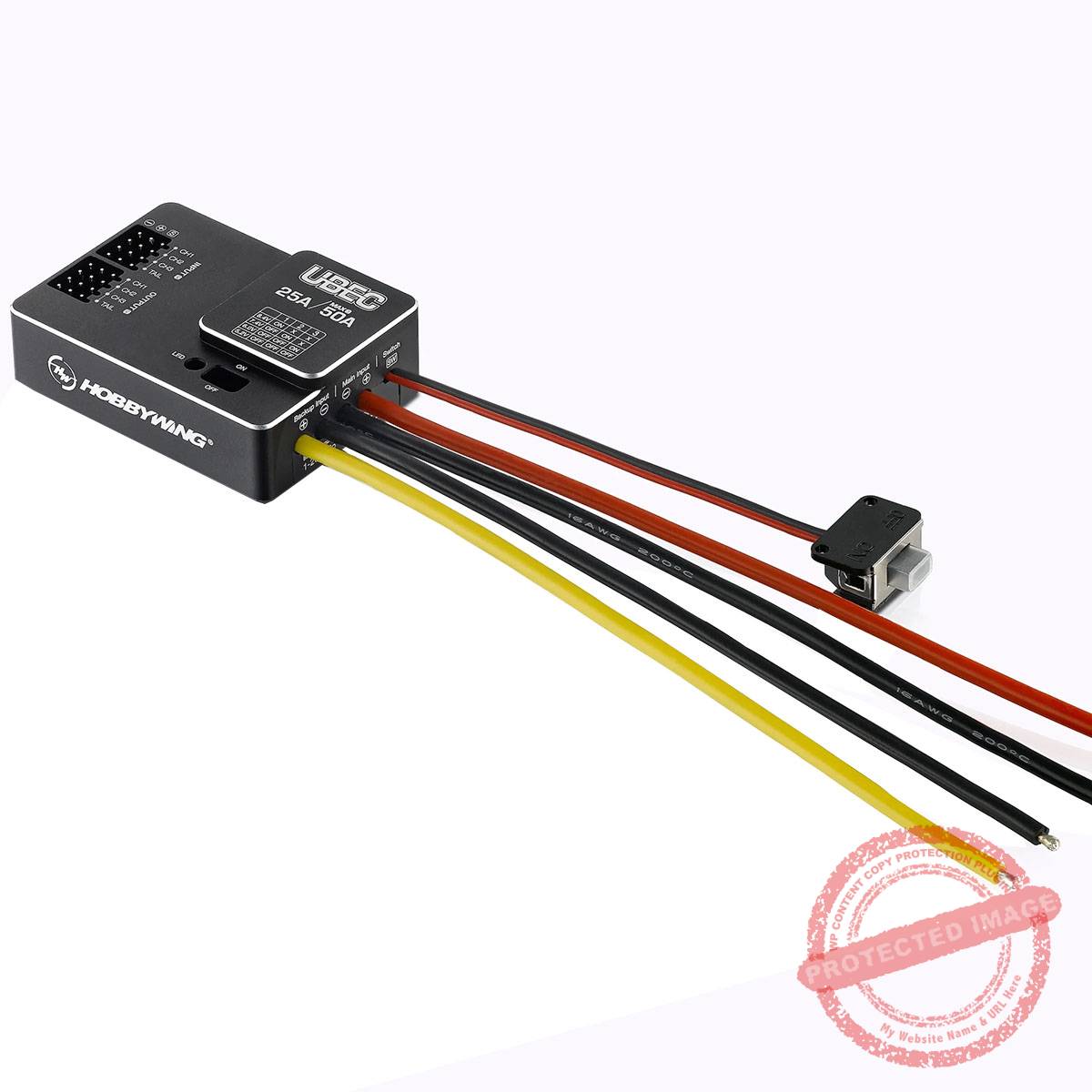

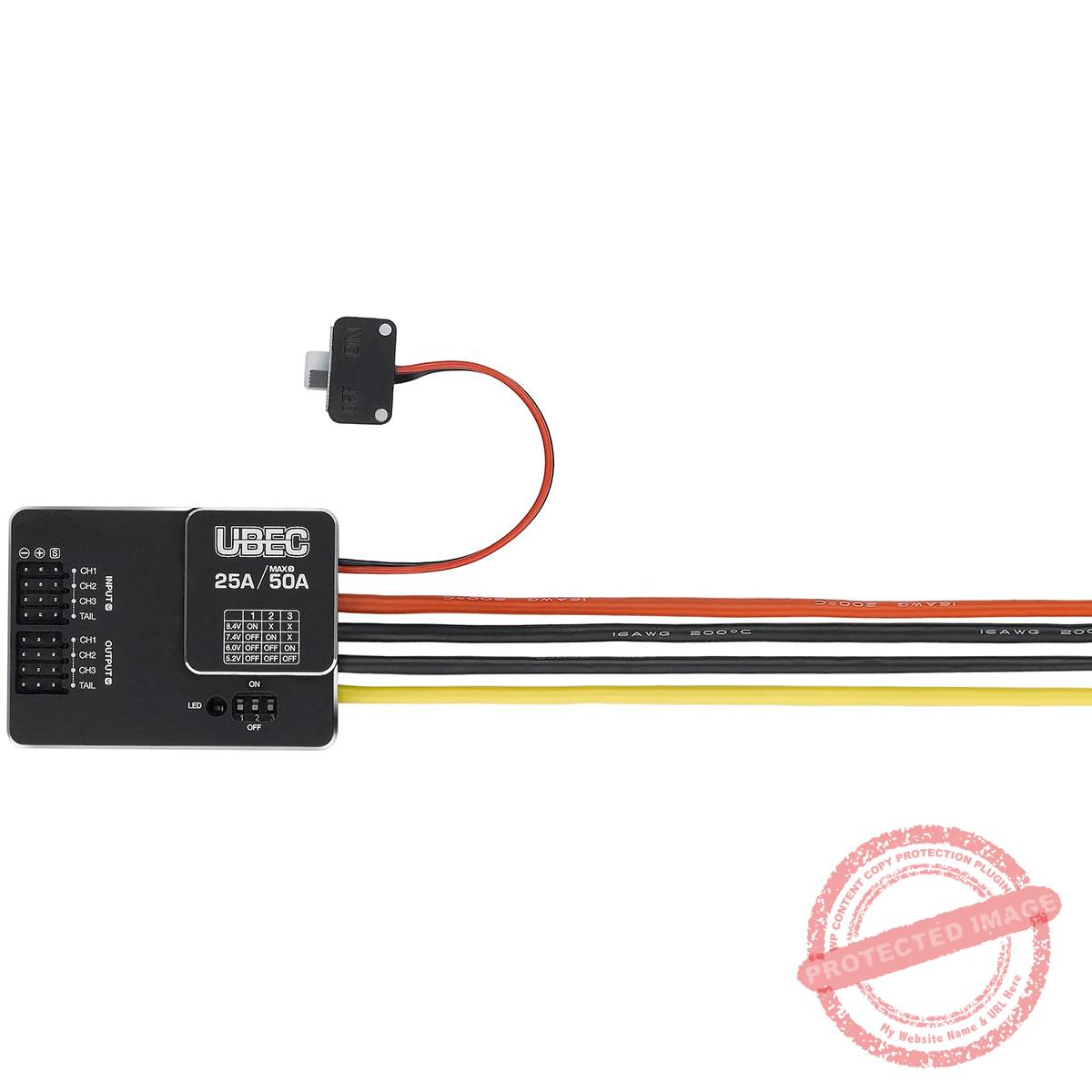

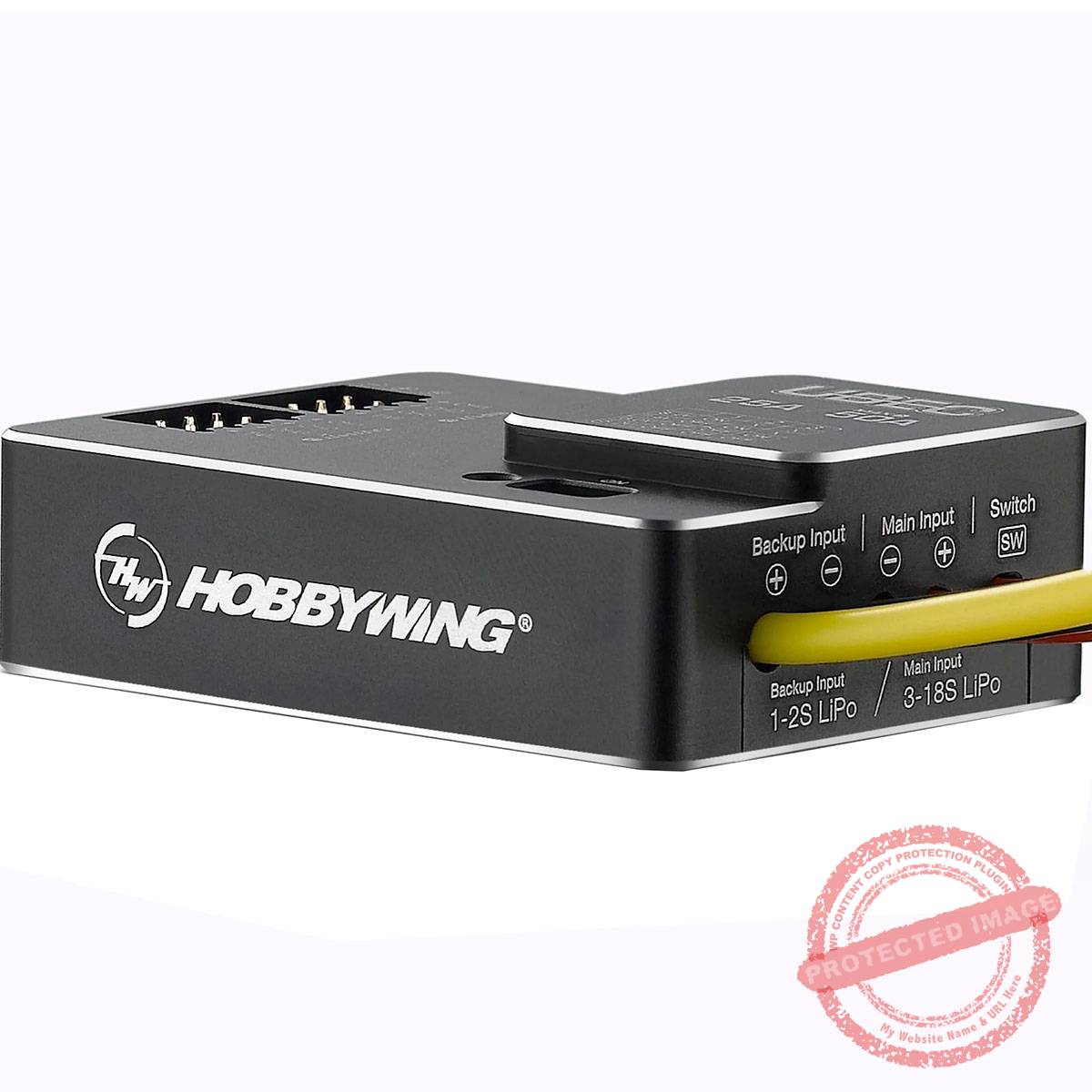

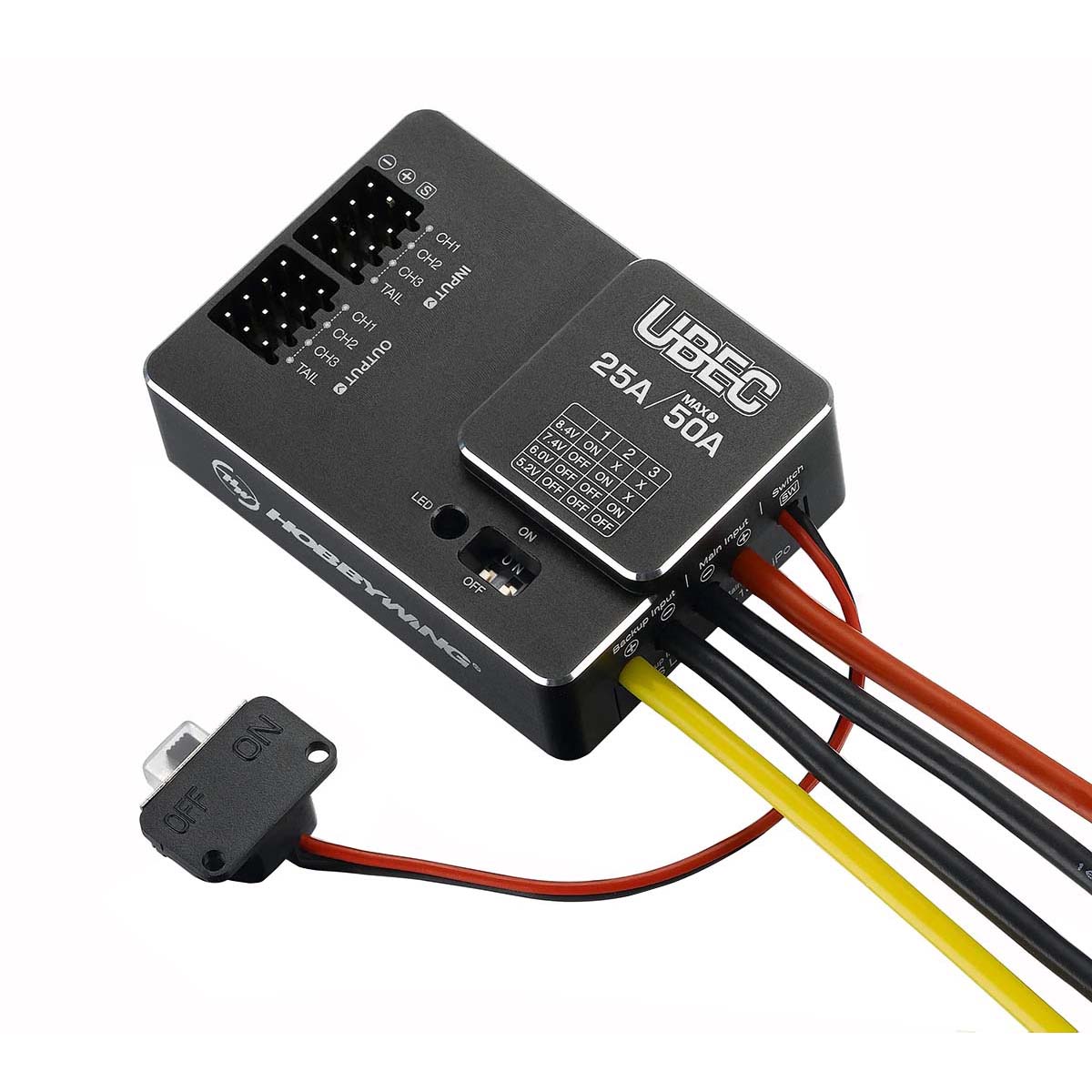

Hobbywing UBEC 25A HV

Hobbywing UBEC 25A HV Hobbywing UBEC 25A HV is an external switching-mode DC-DC regulator chip. lt draws the DC voltage from a 3-18S LiPo battery and drops the voltage to a level suitable for receivers and other electronic devices and keeps providing the stable current output of up to 25Amp. The UBEC has such a powerful output capability, so it is particularly applicable for the large helicopters or fixed-wing aircraft which use several servos. Follow us World Drone Market on YouTube to view more videos about the Hobbywing Product. Specifications pn  30606000 Linear Mode/Switch Mode High Voltage/Regular Switch mode HV Cont./Peak Current 25A/50A Input Voltage (of the Main Power Supply) 3S~18S LiPo (9V~80V) Input Voltage (of the Backup Power Supply) 1S~2S LiPo (/3-9V) Output Voltage 5.2V/6.0V/7.4V/8.4V Adjustable Input Wires Main Power Supply: Red-16AWG-270mm*1/Black-16AWG-270mm*1 Output Wires 3P Vertical Pin Header (60-strand PVC Wire with Two 3P-JR Male Connectors-100mm*4 included） Input Connectors No Output Connectors No Size/Weight 55*40.2*17.6mm/74g
