HDZero Freestyle VTX

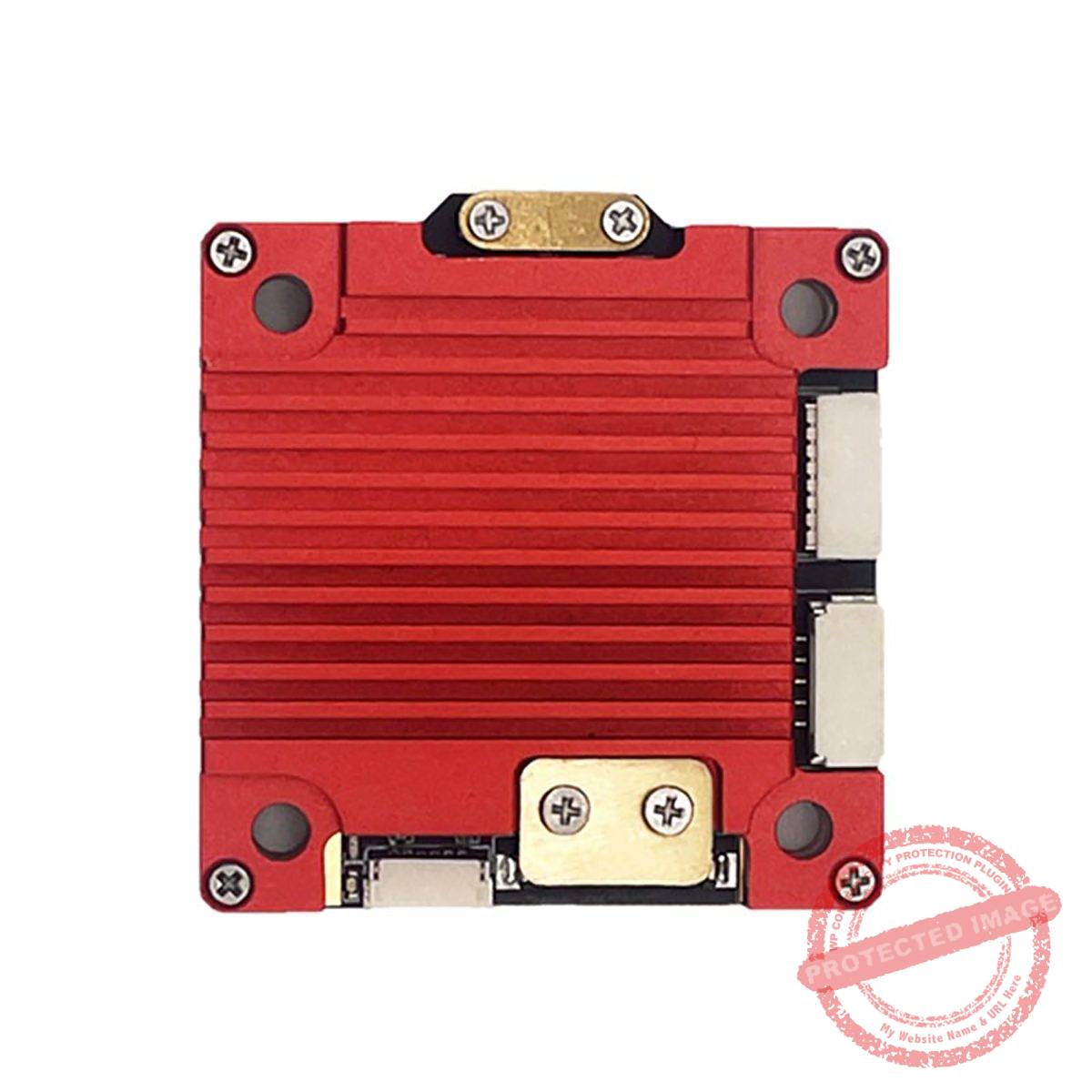

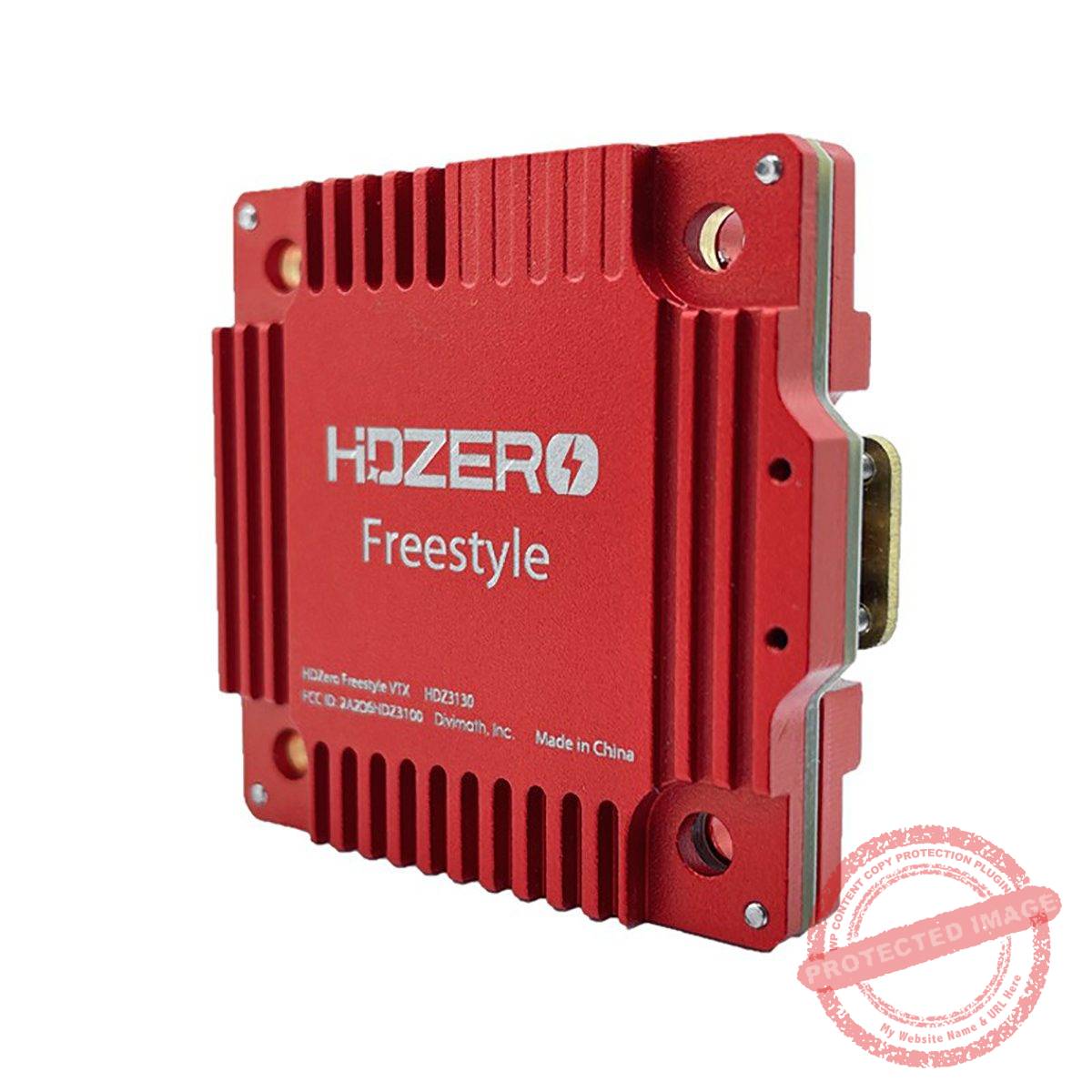

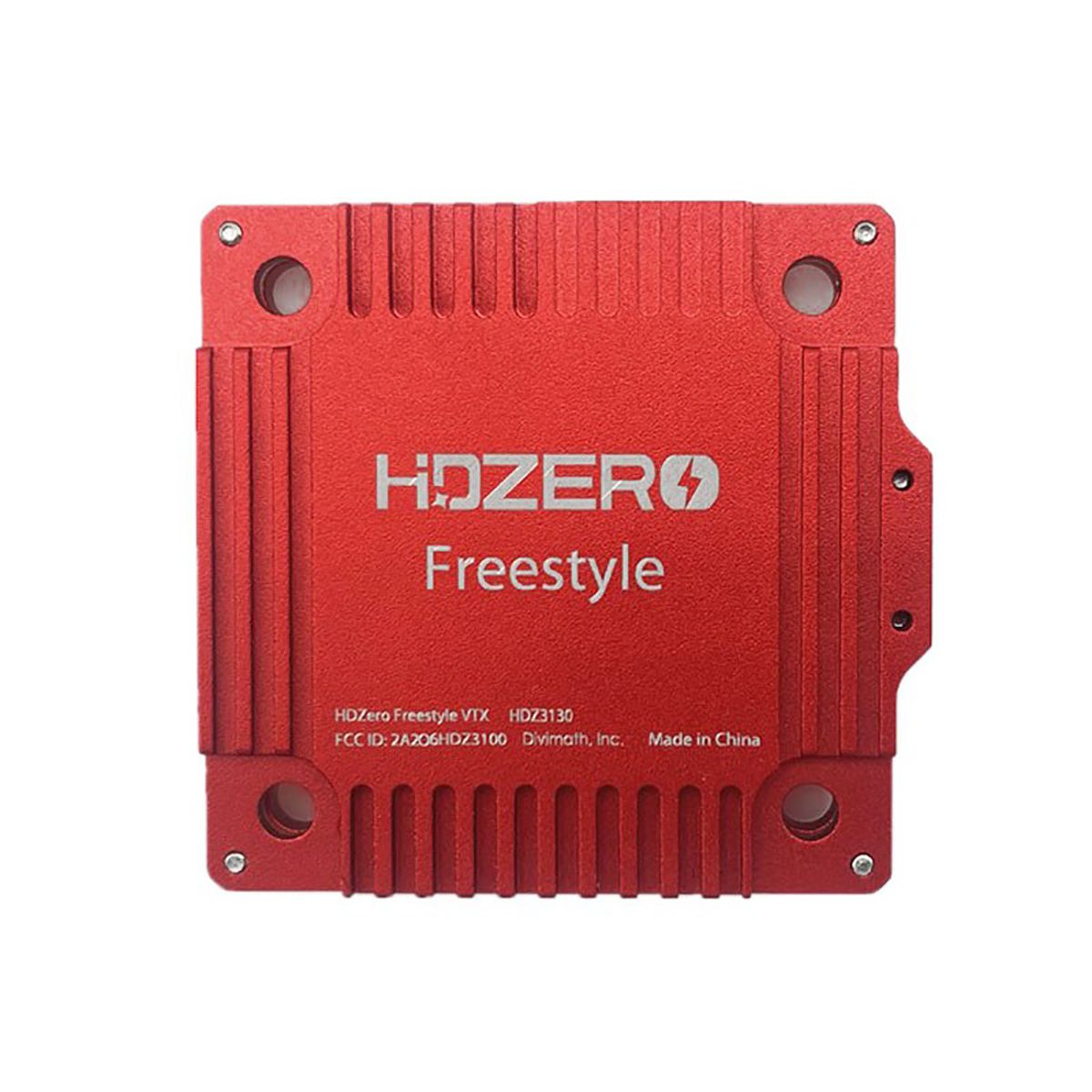

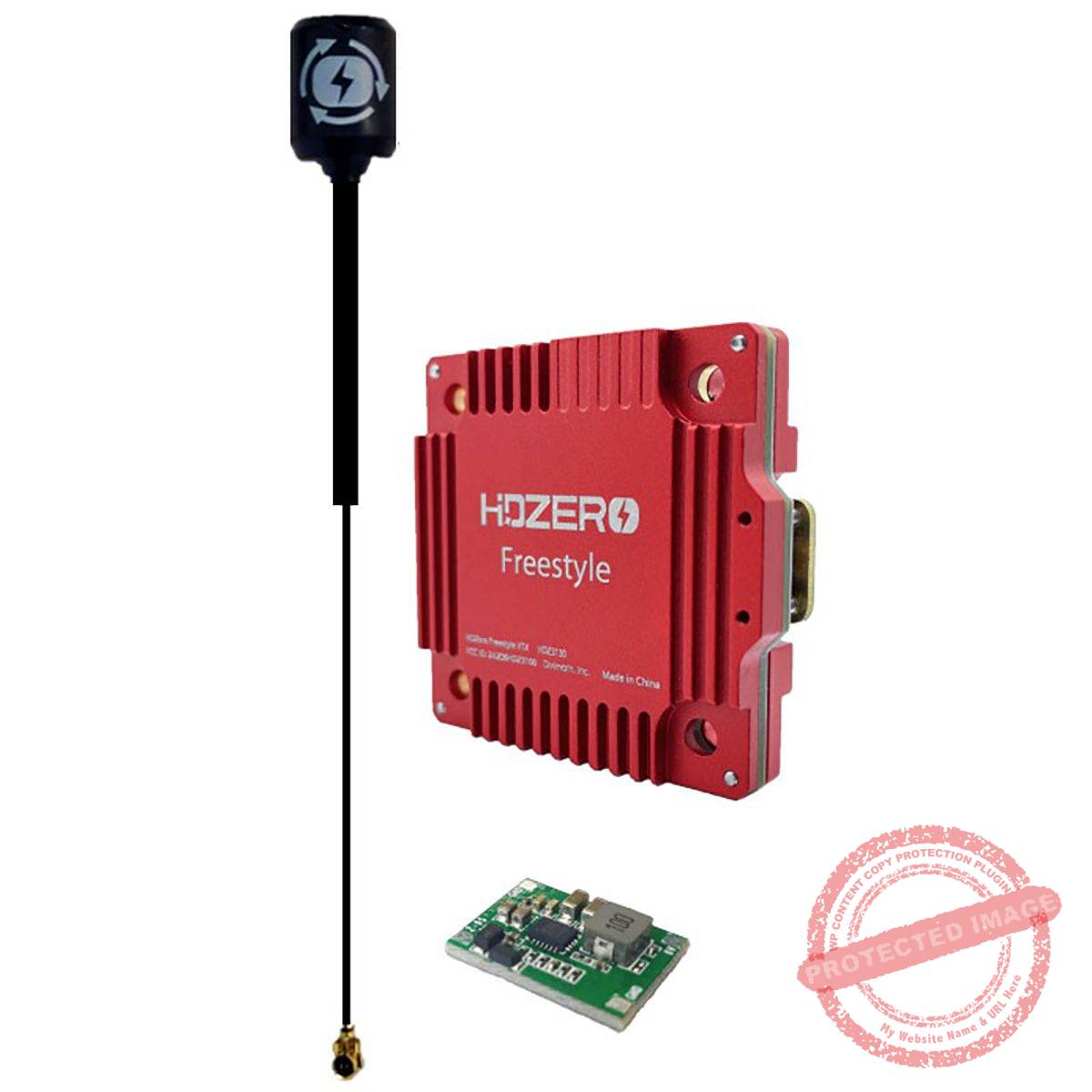

HDZero Freestyle Digital HD Powerful Video Transmitter The HDZero Freestyle VTX is a digital HD 720p 60fps video transmitter capable of delivering up to 1000mw on 5.8GHz. It works with the HDZero/Shark Byte goggle module to transmit video, and with a remote controller to wirelessly control the parameters for the transmitter and camera. The large heatsink surrounding the VTX helps maintain a stable temperature from the increased transmission power potential. Mounts on standard 30x30mm spaced holes. The VTX includes a BEC that converts 2S-6S to fixed 5.8V with a maximum 5A output current. The VTX includes an U.FL RHCP antenna. Though the VTX integrates a surge protection circuit, a large capacitor (450 uF) parallel with battery leads is mandatory to smooth the power supply of the whole quad. Follow us World Drone Market on YouTube to view more videos about HDZero Video Transmitter. Specifications Manufacturer: Divimath, Inc Model: HDZero Freestyle VTX Weight: 28g Dimensions: 40x42x10mm Mounting Pattern: 30x30mm M3 holes Operating Frequency: 5.725-5.850GHz Transmitter Power: 25mW, 200mW (Out of the box) Antenna Interface: Secured U.FL Video In Secured: MIPI SmartAudio: Yes MSP Canvas Mode: Yes Input Power: 7-17V Operating Temperature: 32˚F-104 ˚F (0˚-40˚C) Power Consumption: 6-15W Important Notes: Do not directly connect this HDZero Freestyle VTX with 5S/6S battery. Use 2S-4S VBAT, or included BEC, or FC with built-in BEC: The Freestyle VTX consumes up to 15W. If it is connected with FC that has built-in BEC output, make sure the BEC has enough current. For example, the BEC has 10V, it needs a minimum of 1.5A current output. Removing the heat sink is not recommended because it is part of the design and for Better Air Flow. For more HDZero products, please visit World Drone Market. For product installation and configuration, please visit HDZero.
