Mauch PL-100 Sensor board

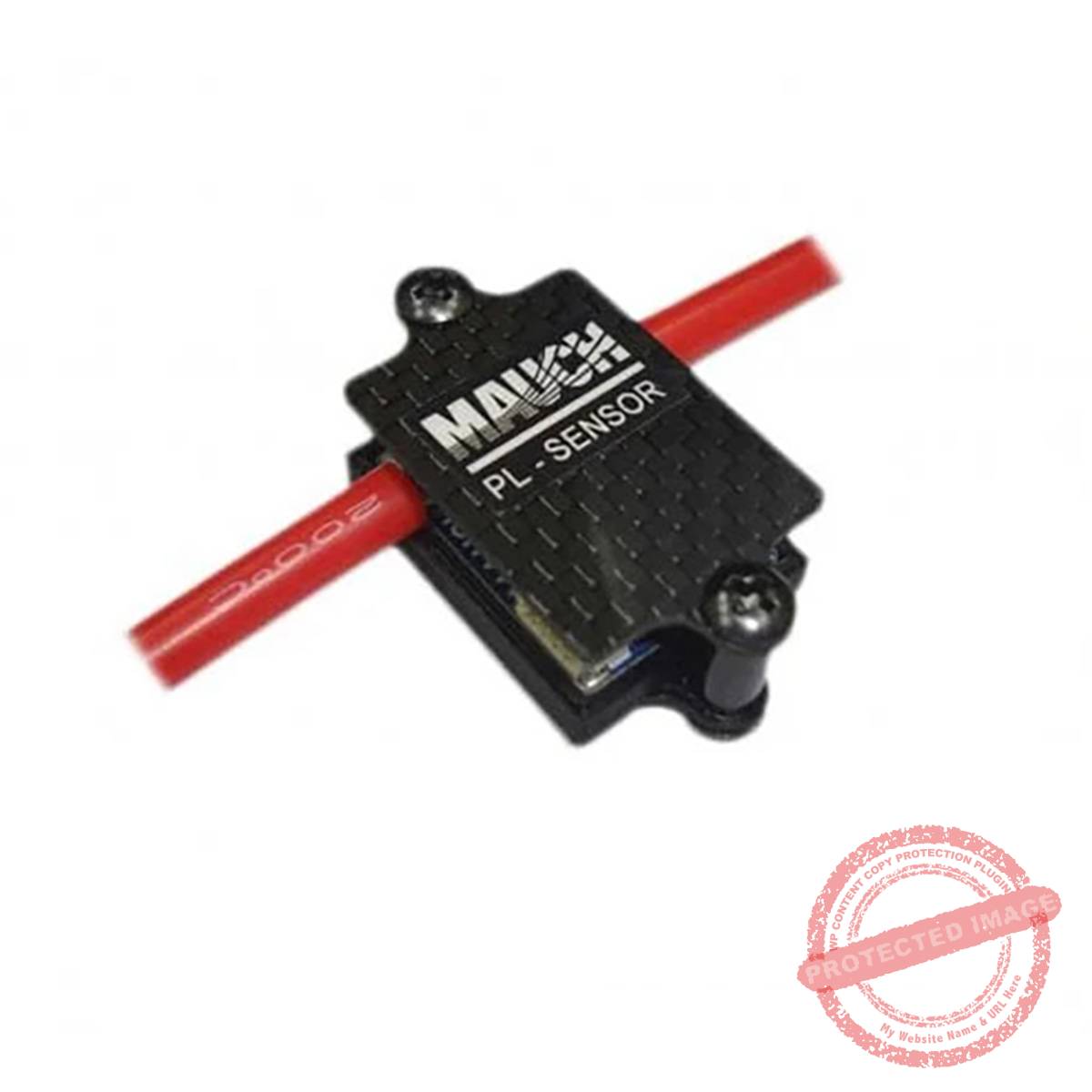

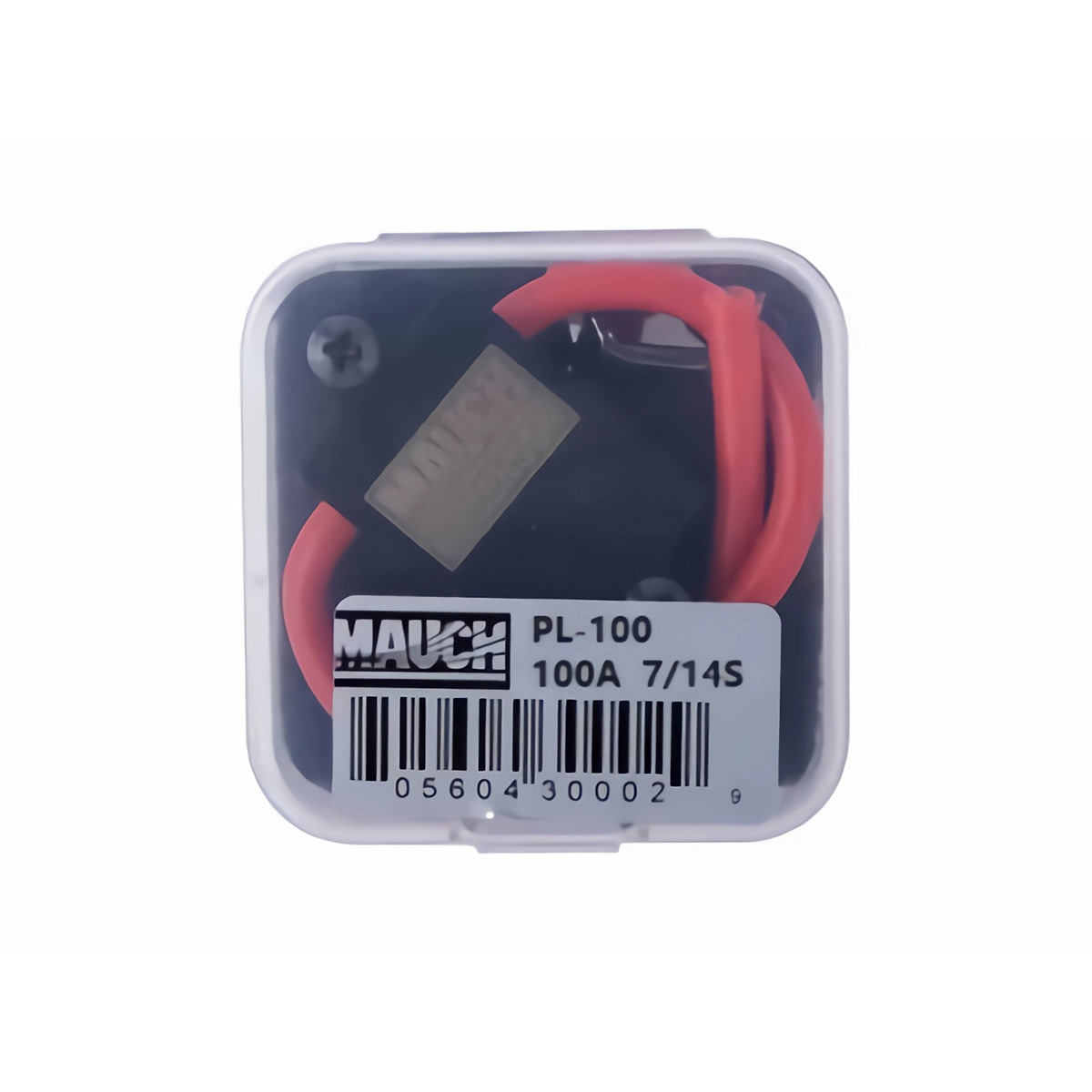

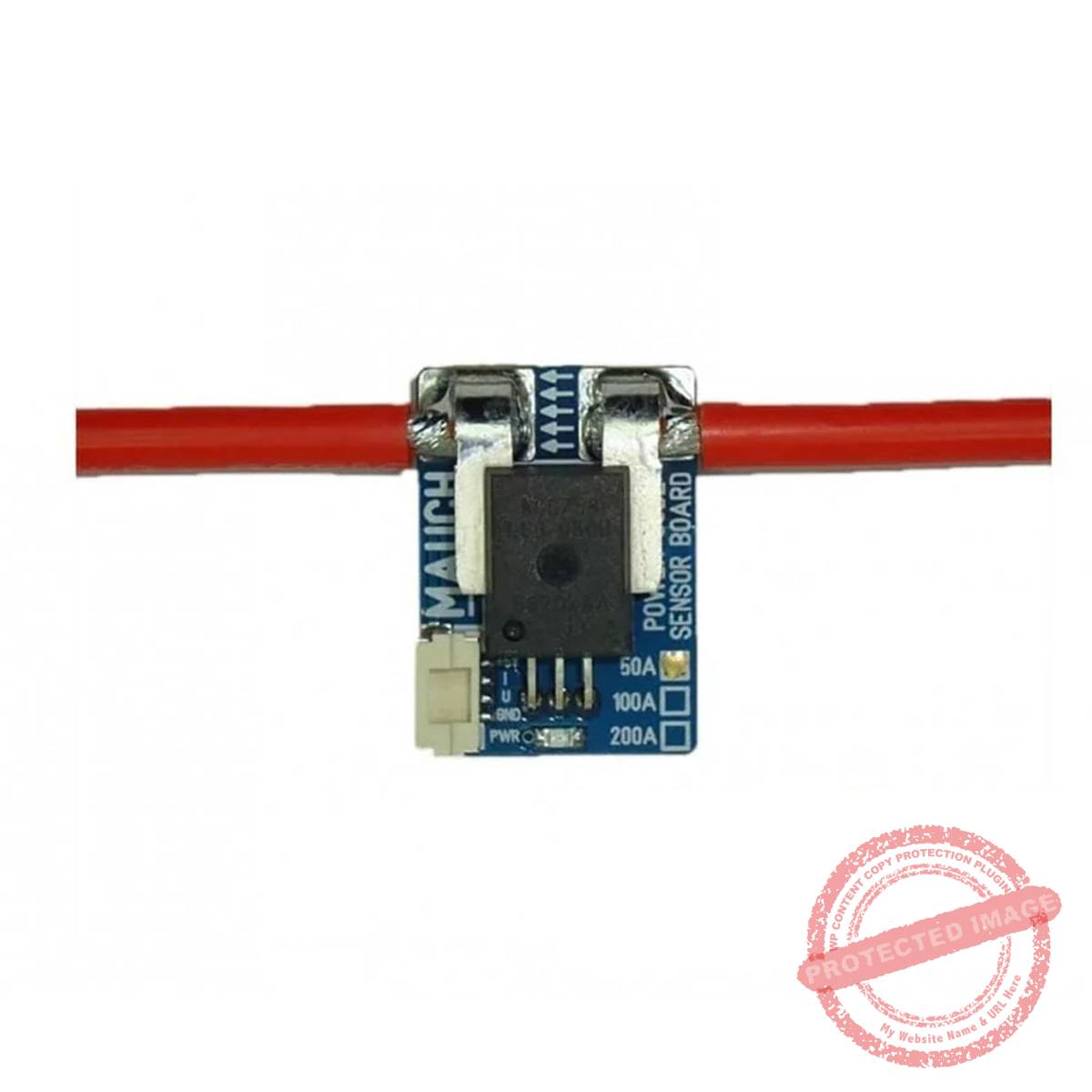

Mauch PL-100 Sensor board / 2x 10cm 12AWG / With CFK Enclosure Power Distribution Board Please purchase a matching Mauch BEC together with this sensor board. Any BEC from the PL-Series or PC-Series will fit this board. Mauch 100A – Current / Voltage measurement sensor board, based on Allegro Hall Sensor ACS758-100U. Voltage range is up to 14S (60V) with solder bridge open and up to 7S (30V) with solder bridge closed. Please check the manual page for more details. This Sensor board connects directly to any Premium-Line BEC or Sensor Hub X2-V2. Connected to the sensor are 2x10cm AWG12 wire (red) as a standard. REM: The connector is Molex / Clik-Mate / 1.25 mm / 4p (5023800400) Without CFK enclosure = 27.5 x 19.5 x 10.5 mm / 17g (with 2x 10 cm 12AWG) With CFK enclosure = 43.5 x 23.0 x 15 mm / 22g (with 2x 10 cm 12AWG) Delivery in PP box: 55 x 55 x 20 mm / 33g Delivery without sensor cable (comes with the BEC’s), with ABS/CFK enclosure Follow us World Drone Market on YouTube to view more videos about mauch. For more mauch product, please visit World Drone Market.
