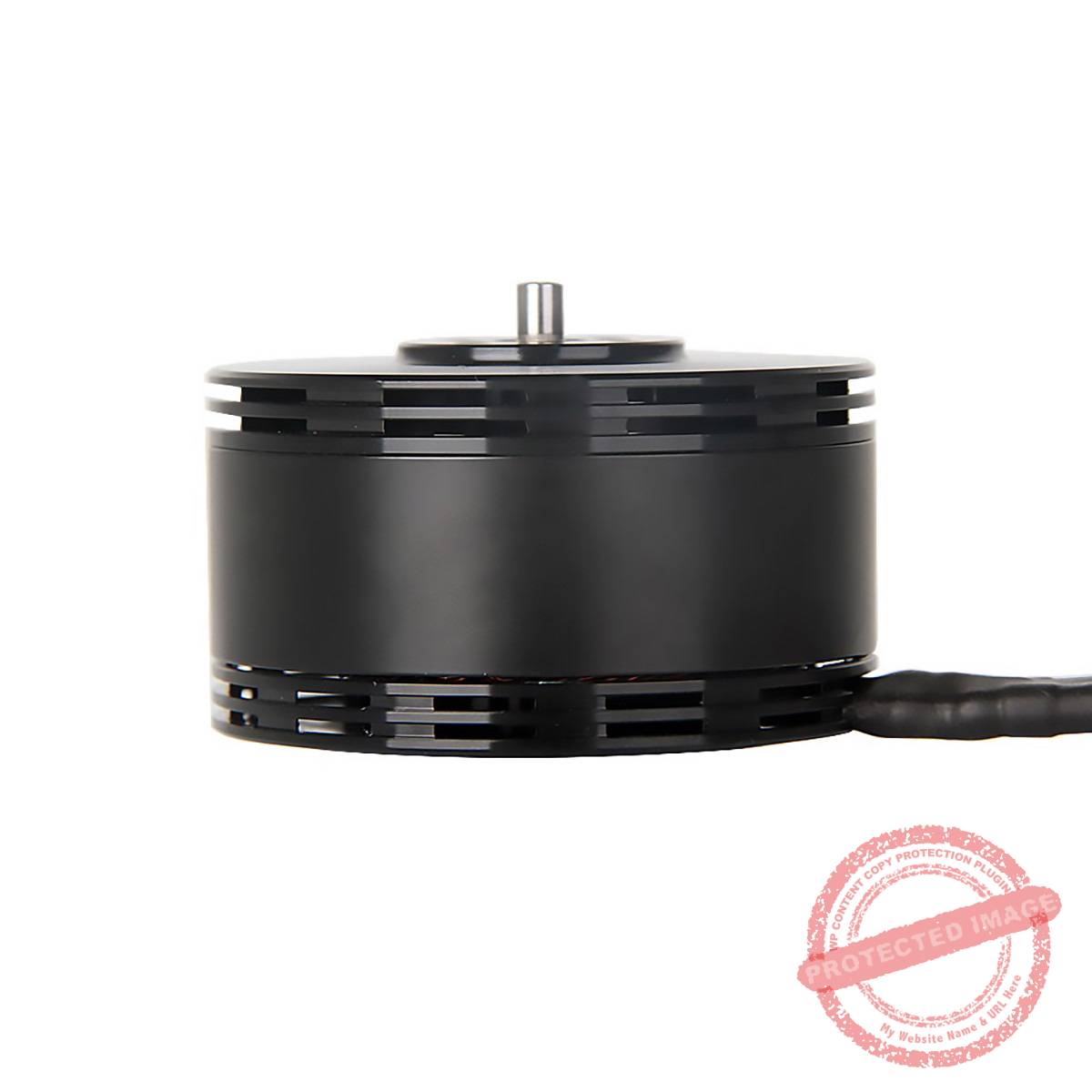

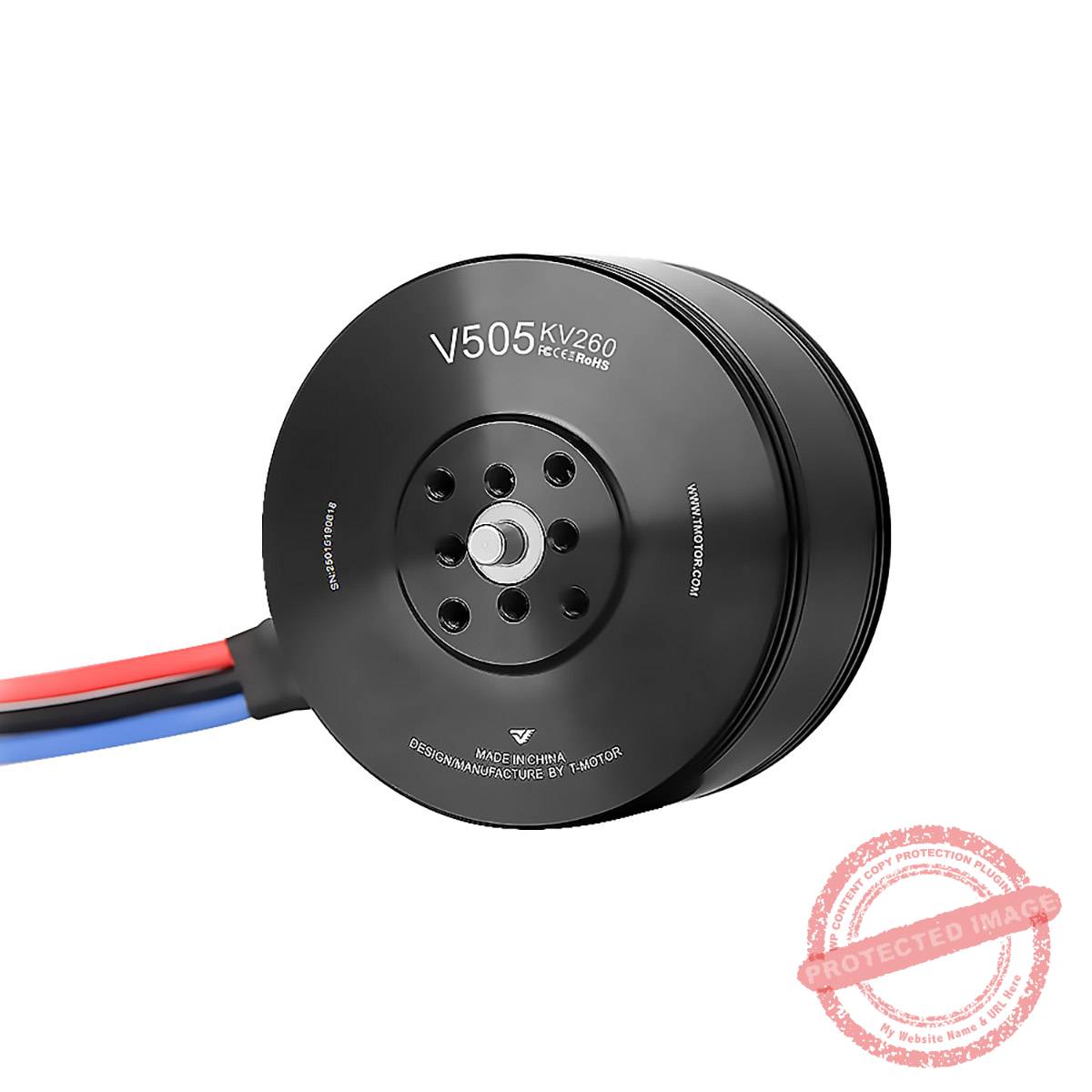

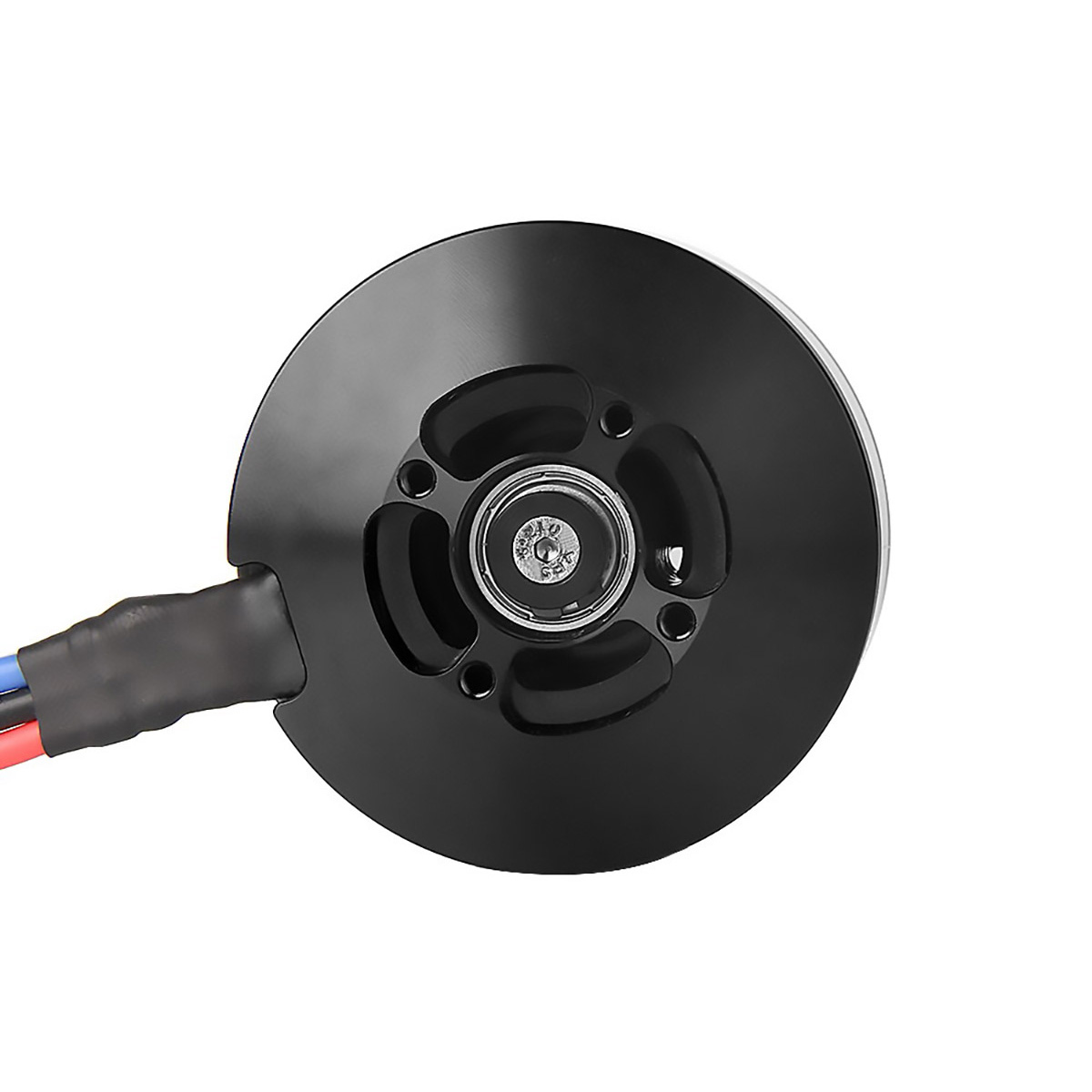

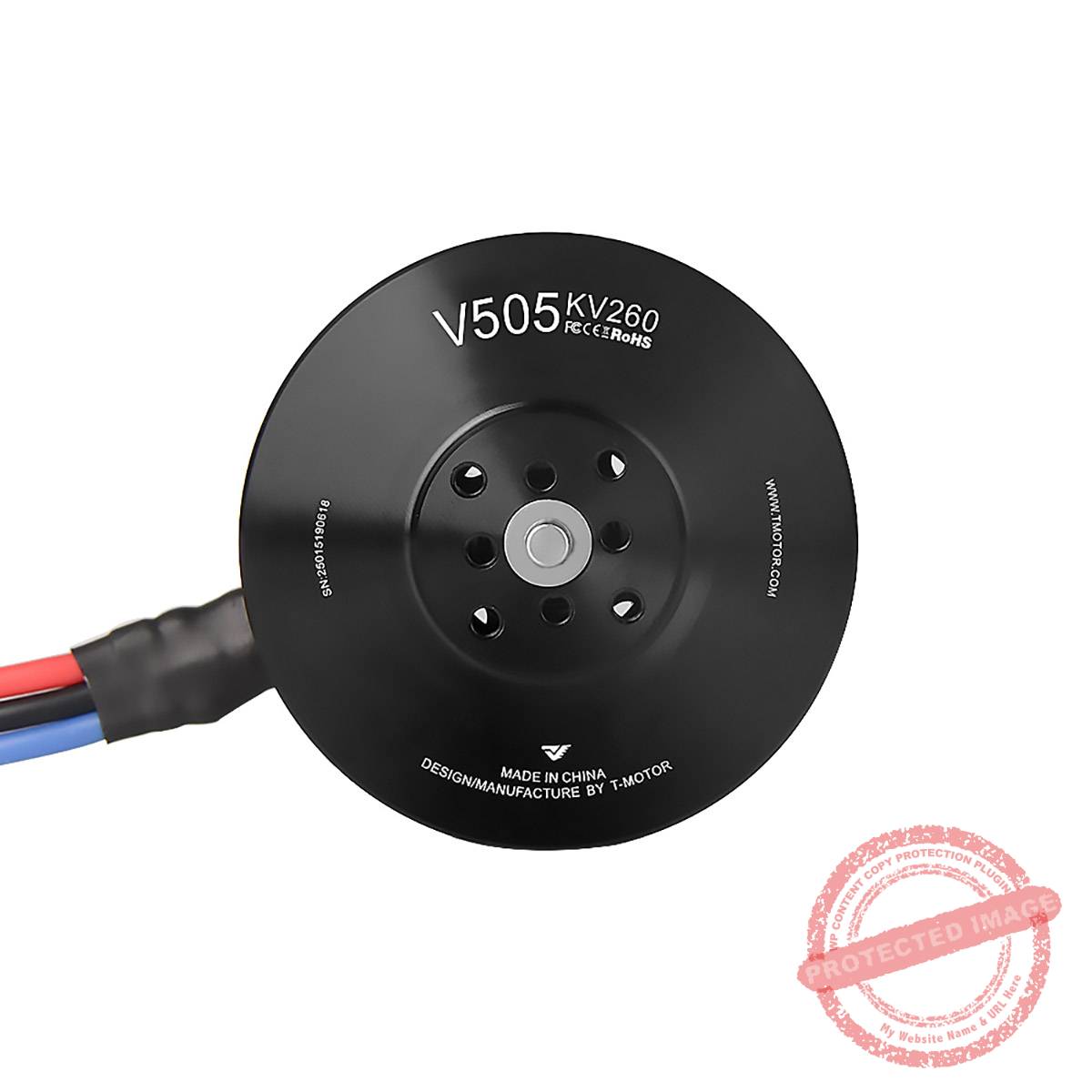

T-Motor V505 KV260 12S

T-Motor V505 KV260 12S SHARP TAKEOFFSTEADY LANDING Vseries is the motors designed for VTOL power system,with abundant power, big pull-to-weight ratio, strong over-load ability& environment adaptiveness features,guarding for your every flight! V505 motor VTOL composite wing solution recommendation VTOL Motor/ KV : V505 KV260 VTOL Battery (Lipo)/Voltage : 12S(4.2V/Sl)/42-52V Stemn thrust propeller recommendation : 16*8/16*10” Stern thrust ESC recommendation : AT115A(6-12S) VTOL Prop : P16*5.4/P17*5.8 VTOL Thrust per Motor : 2.5-3.5 VTOL ESC : FLAME 60A 12S MTOW (Quad) (kg) : 10-15 Stem thrust pull recommendation(kg) : 2-3 Stern thrust motor/KVvalue recommendation : AT4125 KV250/AT4130 KV230 Stern thrust battery (Lipo)/voltage recommendation : 12S(4.2V/Sl)/42-52v Note: For coaxial configuration, a performance loss of 25% should be considered Maximum thrust : 8700g adequate power margin “no need for replacing power setup in 3000 meters below altitude environment Optimized special high-temperature resistant enamelled wirehigh-temperature resistant curved magnets, strengtheningthe passive heat-resistant ability.Centrifugal fan structure, improving the active heat dissipation capacity of the motor Follow us World Drone Market on our YouTube to view more about the T-Motor V505 KV260 12S
