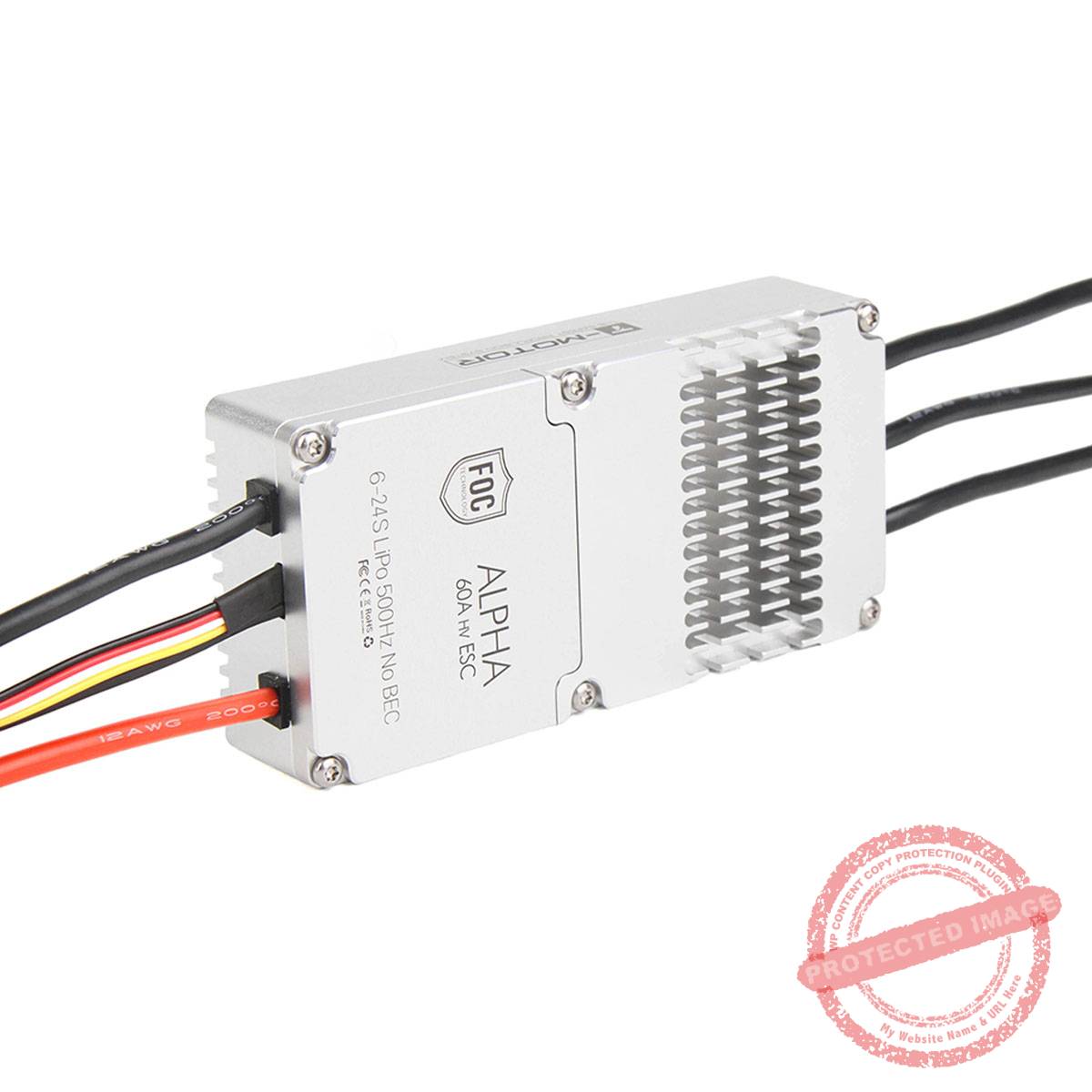

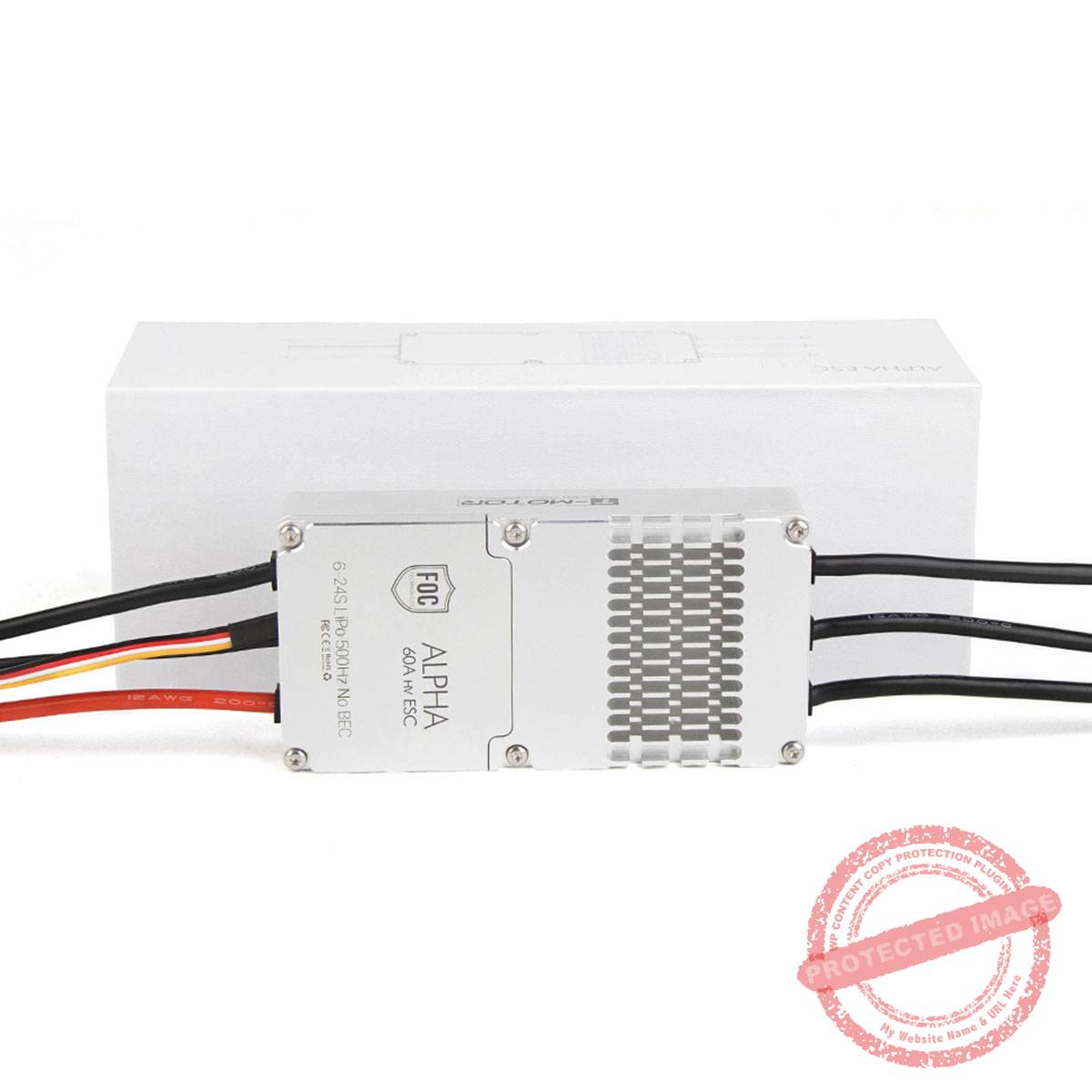

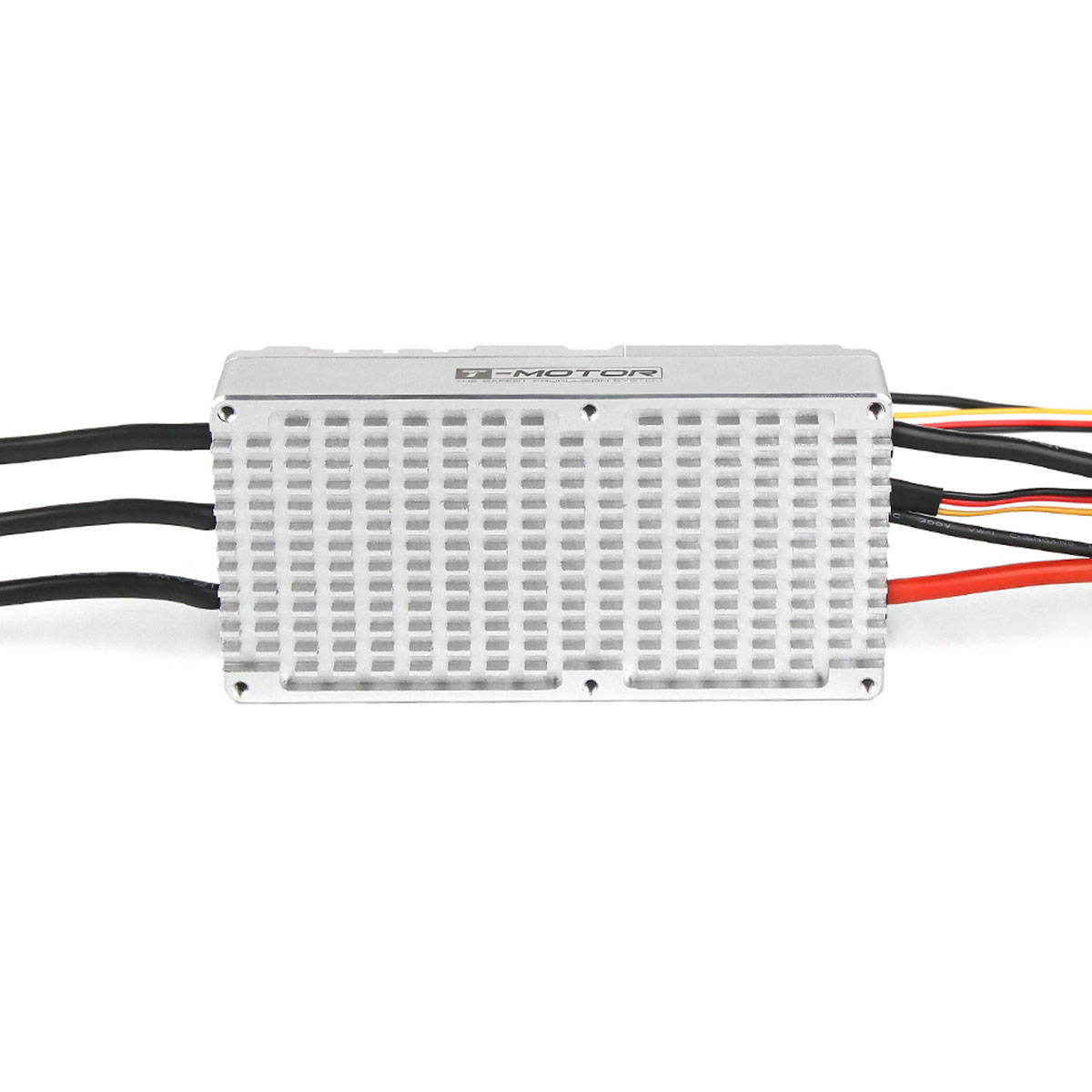

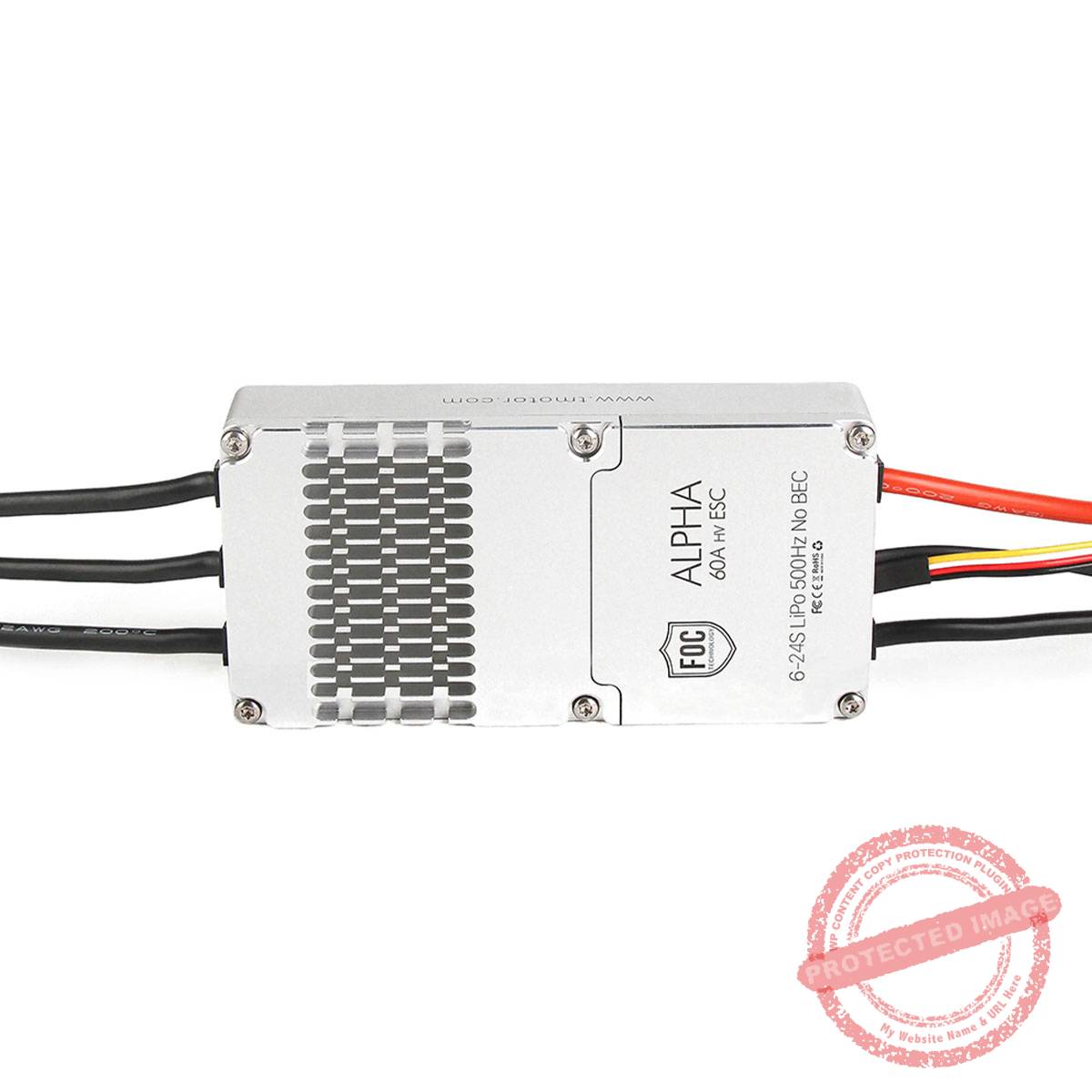

T-Motor Alpha 60A 24S Multi-Rotor UAV FOC ESC

T-Motor Alpha 60A 24S Multi-Rotor UAV FOC ESC Alpha focus technology A revolutionary ESC based on FOC (Sine wave) with intelligent algorithm to satisfy the requirements of professional applications for efficient, accurate and steady motor control. FOC– abbreviation of”field-oriented control”. The principle of FOC is to control motor output via the adjustment of current flow and angle. The features of which can be used to control motor magnetic field and torque. Current and voltage output of 3 phases is presented by vectors in mathematical model, that is why FOC is also known as”vector control”. Low Noise Low Temperature High Efficiency Linear Throttle Fast Response Low interference Energy Recycling High Efficiency Compared with traditional BLDC ESCs (square wave driving), ALPHA ESCs are more efficient with excellent performance for long flight time. Stability Compared with traditional square wave driving, ALPHA ESC responses faster with less pulse current and steady startup. Multiple Protections Intelligent design enables ALPHA ESC to timely detect parameters as to voltage, current and temperature etc. ESC will carry out adjustment and interference upon abnormality. Thus helps prolong the life span. Throttle Loss Protection Motor Lock-up Protection Overcurrent Protection Short Circuit Protection Low Voltage Protection Strict Protection Nano coating technology is adopted in ALPHA ESC PCB A. IP55 grade keep water and dust away Protect ESC from the damage to liquid corrosion as to pesticide for safe operation. Light-weight Design On the promise of waterproof, dust-resistance and cooling performance, ALPHA ESC is 15-20% lighter than square wave ESC of same size. Anti-corrosion Dust-resistance & Waterproof Nano Coating Ultra-light Shell Efficient Cooling FOC driving without hybrid current reduces ESC temperature. Novel cooling design contributes to temperature drop by 10% ESC runs at ease at hot environment. Active Braking With active braking function motor recycles energy when slowing down. With the recycled energy motor charges the battery reversely for flight time extension. Follow us World Drone Market on our YouTube to view more about the T-Motor Alpha 60A 24S Multi-Rotor UAV FOC ESC.
