Locosys Hawk A1

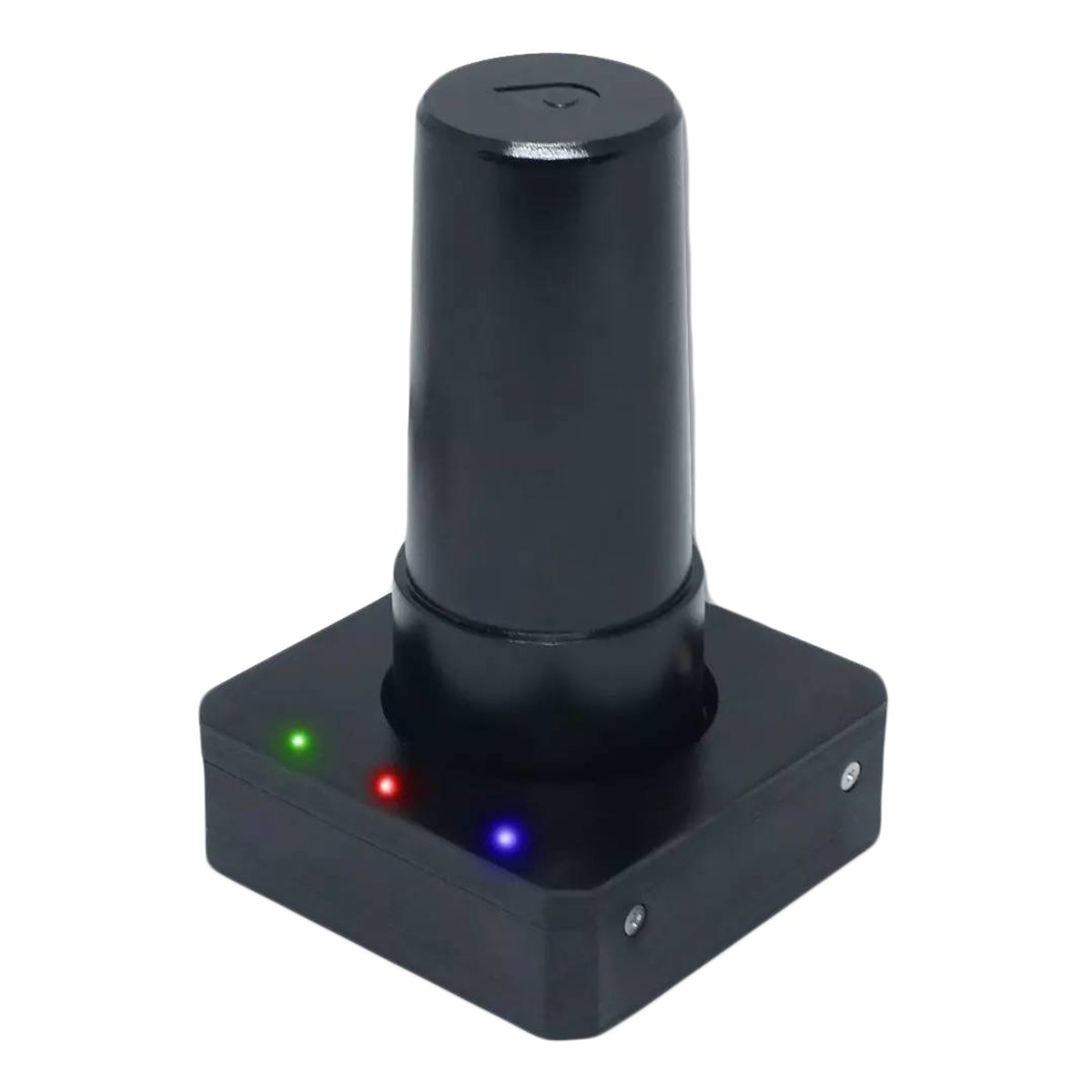

Locosys Hawk A1(GNSS) Locosys Hawk A1 GPS is dual-frequency GNSS sub-meter level receiver designed for Pixhawk(PX4) platform-based UAV. The receiver is capable of concurrently tracking all global civil navigation systems, including GPS, GLONASS, GALILEO, BEIDOU and QZSS. It acquires both L1 and L5 signals at a time while providing sub-meter positioning accuracy. The built-in lightweight helical antenna not only enhances positioning stability, but also increases the flight time of the drone. The fast Time-To-First-Fix, GNSS convergence, superior sensitivity and low power consumption make it become better GNSS receiver solution for Pixhawk(PX4) platform-based UAV FEATURES Sub-meter position accuracy< 1.5m Concurrent reception of L1 and L5 band signals Support GPS, GLONASS,BEIDOU, GALILEO, QZSS Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN) Support 135-channel GNSS Fast TTFF at low signal level Free hybrid ephemeris prediction to achieve faster cold start Default 5Hz, up to 10 Hz update rate* Build-in super capacitor to reserve system data for rapid satellite acquisition Three LED indicator for Power, PPS and Data transmit *Note: SBAS support 5Hz only. Locosys Hawk comparison Product name  Description  RTK position accuracy  Integrated e-compass Hawk A1  Sub-meter GNSS receiver for UAV Hawk R1  RTK receiver for UAV ● Hawk R2  RTK receiver for UAV e-compass ● ● APPLICATIONS Unmanned aerial vehicle (UAV) positioning and navigation Pixhawk website link for Locosys Hawk A1 GPS : https://docs.px4.io/main/en/gps_compass/gps_locosys_hawk_a1.html For other drone accessories, please visit our Store. Watch more about products on our YouTube.
